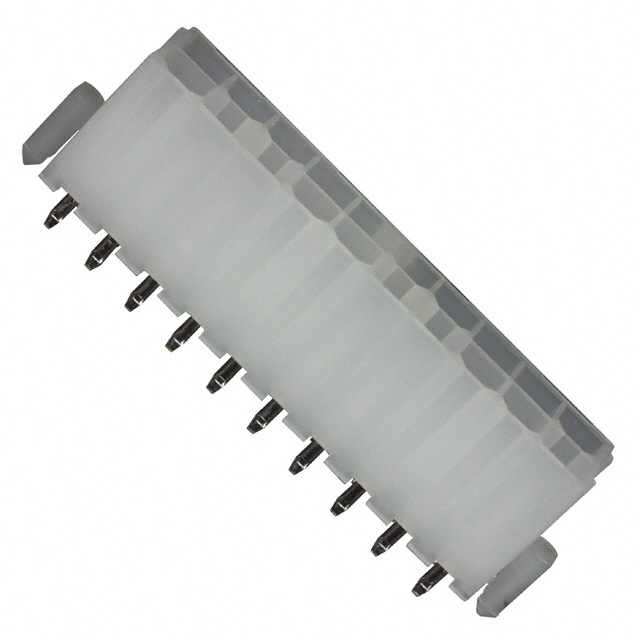

0039306207
Or copy the link below:
- Mfr.Part #
- 0039306207
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 20POS 4.2MM
- Stock
- 16
- In Stock ：
- 16
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Insulation Height :
- 0.504 12.80mm
- Termination :
- Solder
- Series :
- Mini-Fit Jr 5566
- Contact Type :
- Male Pin
- Feature :
- Board Lock
- Fastening Type :
- Locking Ramp
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 6 Weeks
- Number of Positions Loaded :
- All
- Contact Length - Post :
- 0.138 3.50mm
- Packaging :
- Tray
- Pitch - Mating :
- 0.165 4.20mm
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Mounting Type :
- Through Hole
- RoHS Status :
- ROHS3 Compliant
- Connector Type :
- Header
- Contact Shape :
- Square
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Finish - Mating :
- Tin
- Applications :
- General Purpose, Industrial, Telecommunications
- Number of Positions :
- 20
- Number of Rows :
- 2
- Shrouding :
- Shrouded - 4 Wall
- Contact Material :
- Brass
- Insulation Color :
- Natural
- Style :
- Board to Cable/Wire
- Material Flammability Rating :
- UL94 V-2
- Datasheets
- 0039306207
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 20-Position Board to Cable/Wire 0.504 12.80mm Height
0039306207 Overview
Currently, it is packaged in Header.Mounting type Through Hole is assigned to the device.Packaging the product involves using a Tray case.Among the products in the Mini-Fit Jr 5566 Series, it is one of the most popular.The device could be used for General Purpose, Industrial, Telecommunications.A number of benefits can be derived from the Board Lock feature of this application.
0039306207 Features
Mini-Fit Jr 5566 series
0039306207 Applications
There are a lot of Molex
0039306207 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
