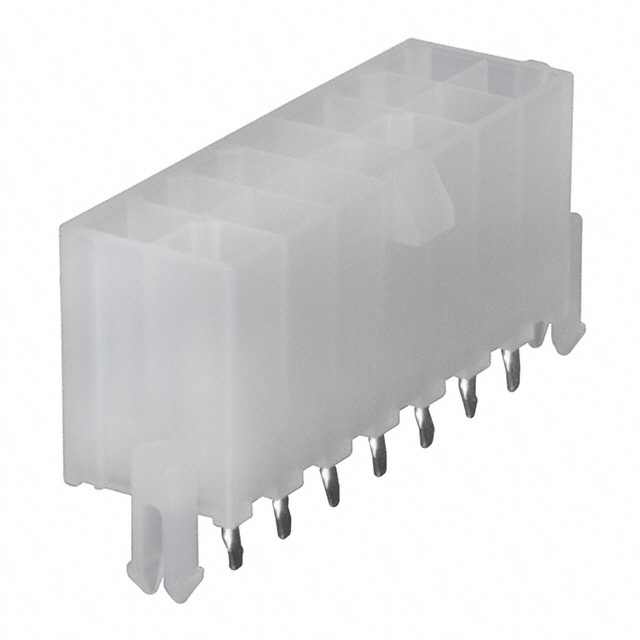

0039306147
Or copy the link below:
- Mfr.Part #
- 0039306147
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 14POS 4.2MM
- Stock
- 6,083
- In Stock ：
- 6,083
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Voltage - Rated :
- 600V
- Series :
- Mini-Fit Jr 5566
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Pitch - Mating :
- 0.165 4.20mm
- Shrouding :
- Shrouded - 4 Wall
- Halogen Free :
- Low Halogen
- Material Flammability Rating :
- UL94 V-0
- Housing Material :
- Nylon
- Style :
- Board to Cable/Wire
- Number of Positions Loaded :
- All
- Termination :
- Solder
- Factory Lead Time :
- 5 Weeks
- Applications :
- General Purpose, Industrial, Telecommunications
- Contact Gender :
- Male
- Min Operating Temperature :
- -40°C
- Contact Type :
- Male Pin
- Connector Type :
- Header
- Contact Material :
- Brass
- Number of Rows :
- 2
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Orientation :
- Vertical
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Mount :
- Through Hole
- Contact Shape :
- Square
- Insulation Color :
- Natural
- Max Voltage Rating (DC) :
- 600.6kV
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Fastening Type :
- Locking Ramp
- Packaging :
- Tray
- Number of Contacts :
- 14
- Max Operating Temperature :
- 105°C
- Contact Finish - Mating :
- Tin
- Mounting Type :
- Through Hole
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 6A
- Feature :
- Board Lock
- Insulation Height :
- 0.504 12.80mm
- Glow Wire Compliant :
- Non-Compliant
- Contact Length - Post :
- 0.138 3.50mm
- Datasheets
- 0039306147
0039306147 Documents
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 Board to Cable/Wire 0.504 12.80mm Height
0039306147 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the Mini-Fit Jr 5566 Series.If the temperature is below 105°C, it's best to use it.-40°C is the minimum temperature for this device.There are a variety of possible applications for this device, including General Purpose, Industrial, Telecommunications.Several benefits come from the Board Lock feature.There is a mounting hole at Through Hole.
0039306147 Features
Mini-Fit Jr 5566 series
0039306147 Applications
There are a lot of Molex
0039306147 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
