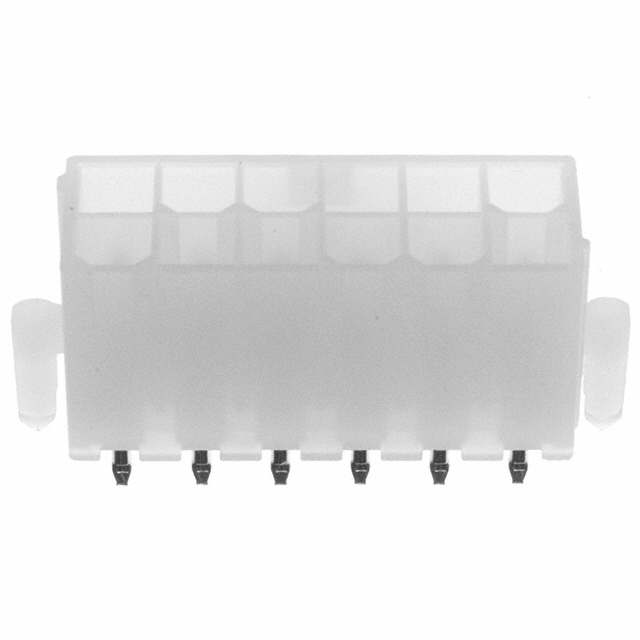

0039306127
Or copy the link below:
- Mfr.Part #
- 0039306127
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 12POS 4.2MM
- Stock
- 2,759
- In Stock ：
- 2,759
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Insulation Height :
- 0.504 12.80mm
- Number of Positions Loaded :
- All
- Number of Rows :
- 2
- Insulation Color :
- Natural
- Contact Material :
- Brass
- Fastening Type :
- Locking Ramp
- Applications :
- General Purpose, Industrial, Telecommunications
- Contact Type :
- Male Pin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 12
- Contact Length - Post :
- 0.138 3.50mm
- RoHS Status :
- ROHS3 Compliant
- Shrouding :
- Shrouded - 4 Wall
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 6 Weeks
- Series :
- Mini-Fit Jr 5566
- Contact Finish - Mating :
- Tin
- Connector Type :
- Header
- Feature :
- Board Lock
- Material Flammability Rating :
- UL94 V-2
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Style :
- Board to Cable/Wire
- Termination :
- Solder
- Packaging :
- Tray
- Contact Shape :
- Square
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Pitch - Mating :
- 0.165 4.20mm
- Datasheets
- 0039306127
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 12-Position Board to Cable/Wire 0.504 12.80mm Height
0039306127 Overview
Currently, it is packaged in Header.Mounting type Through Hole is assigned to the device.Packaging the product involves using a Tray case.Among the products in the Mini-Fit Jr 5566 Series, it is one of the most popular.The device could be used for General Purpose, Industrial, Telecommunications.A number of benefits can be derived from the Board Lock feature of this application.
0039306127 Features
Mini-Fit Jr 5566 series
0039306127 Applications
There are a lot of Molex
0039306127 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
