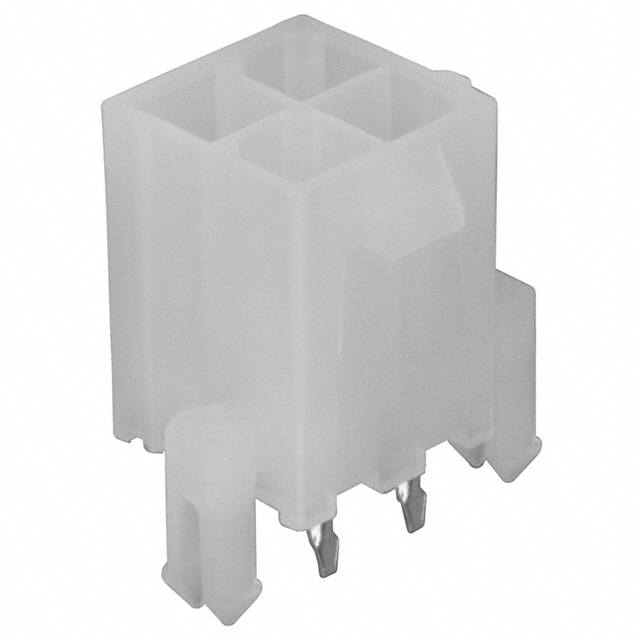

0039306047
Or copy the link below:
- Mfr.Part #
- 0039306047
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 4.2MM
- Stock
- 51,712
- In Stock ：
- 51,712
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- RoHS Status :
- ROHS3 Compliant
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Shape :
- Square
- Series :
- Mini-Fit Jr 5566
- Shrouding :
- Shrouded - 4 Wall
- Pitch - Mating :
- 0.165 4.20mm
- Material Flammability Rating :
- UL94 V-2
- Insulation Height :
- 0.504 12.80mm
- Contact Length - Post :
- 0.138 3.50mm
- Factory Lead Time :
- 6 Weeks
- Termination :
- Solder
- Fastening Type :
- Locking Ramp
- Number of Positions :
- 4
- Packaging :
- Tray
- Contact Finish - Mating :
- Tin
- Mounting Type :
- Through Hole
- Number of Positions Loaded :
- All
- Feature :
- Board Lock
- Style :
- Board to Cable/Wire
- Contact Material :
- Brass
- Number of Rows :
- 2
- Applications :
- General Purpose, Industrial, Telecommunications
- Connector Type :
- Header
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Contact Type :
- Male Pin
- Insulation Color :
- Natural
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Finish - Post :
- Tin
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Datasheets
- 0039306047
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 4-Position Board to Cable/Wire 0.504 12.80mm Height
0039306047 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the Mini-Fit Jr 5566 Series, it can be found in this category.A possible application of the device would be General Purpose, Industrial, Telecommunications.With its Board Lock feature, it is more powerful in many ways.
0039306047 Features
Mini-Fit Jr 5566 series
0039306047 Applications
There are a lot of Molex
0039306047 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
