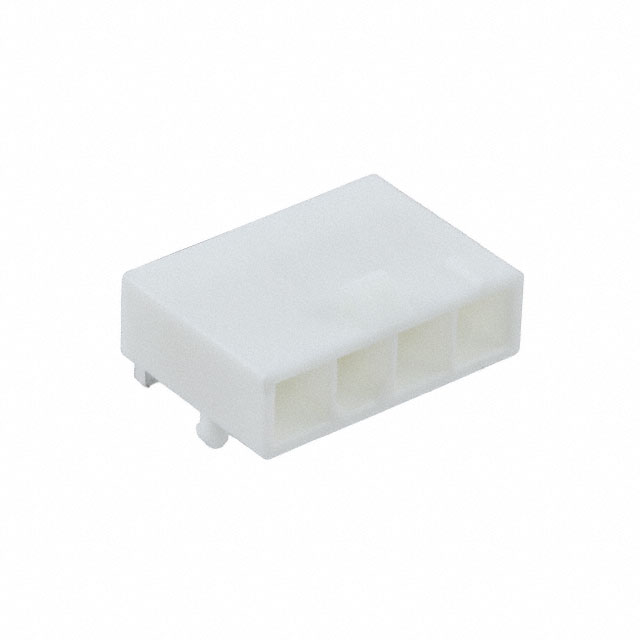

0039303048
Or copy the link below:
- Mfr.Part #
- 0039303048
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 4POS 4.2MM
- Stock
- 7,211
- In Stock ：
- 7,211
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Insulation Height :
- 0.213 5.40mm
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Length - Post :
- 0.138 3.50mm
- Feature :
- Board Lock
- Number of Rows :
- 1
- Shrouding :
- Shrouded - 4 Wall
- Pitch - Mating :
- 0.165 4.20mm
- Termination :
- Solder
- Style :
- Board to Cable/Wire
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 8 Weeks
- Contact Material :
- Brass
- Mounting Type :
- Through Hole, Right Angle
- Number of Positions :
- 4
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Color :
- Natural
- Contact Shape :
- Square
- Number of Positions Loaded :
- All
- Pbfree Code :
- yes
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Series :
- Mini-Fit Jr 5569
- Fastening Type :
- Locking Ramp
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Finish - Mating :
- Gold
- Contact Finish - Post :
- Tin
- Connector Type :
- Header
- Applications :
- General Purpose, Industrial, Telecommunications
- Contact Type :
- Male Pin
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Datasheets
- 0039303048
0039303048 Documents
Mini-Fit Jr 5569 Series 1-Row Header Solder Brass Bulk Through Hole, Right Angle Gold Polyamide (PA66), Nylon 6/6 4-Position Board to Cable/Wire 0.213 5.40mm Height
0039303048 Overview
Packaging is Header.Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Mini-Fit Jr 5569 Series, it can be found in this category.A possible application of the device would be General Purpose, Industrial, Telecommunications.With its Board Lock feature, it is more powerful in many ways.
0039303048 Features
Mini-Fit Jr 5569 series
0039303048 Applications
There are a lot of Molex
0039303048 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
