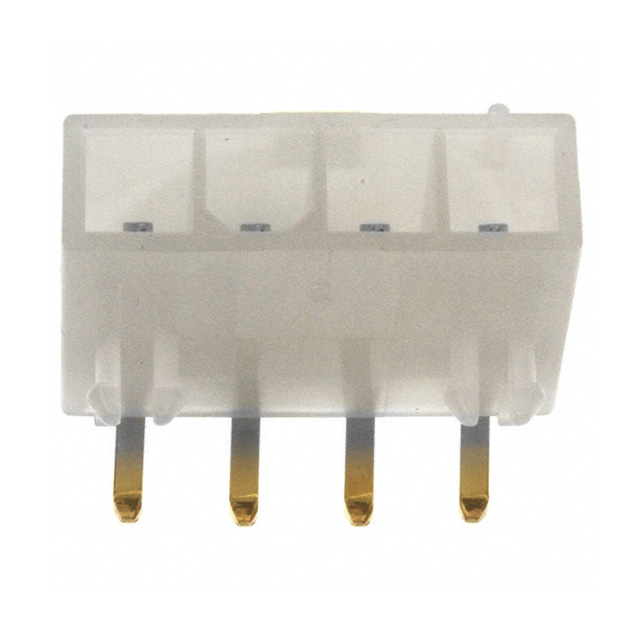

0039303047
Or copy the link below:
- Mfr.Part #
- 0039303047
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 4POS 4.2MM
- Stock
- 12,048
- In Stock ：
- 12,048
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish - Post :
- Tin
- Shell Material :
- POLYAMIDE66
- Termination :
- Solder
- Pitch - Mating :
- 0.165 4.20mm
- Packaging :
- Bulk
- Empty Shell :
- No
- Fastening Type :
- Locking Ramp
- Contact Finish - Mating :
- Gold
- Connector Type :
- Header
- Style :
- Board to Cable/Wire
- MIL Conformance :
- No
- Insulation Height :
- 0.213 5.40mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Series :
- Mini-Fit Jr 5569
- Number of Rows :
- 1
- Factory Lead Time :
- 5 Weeks
- Contact Material :
- Brass
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Additional Feature :
- SHROUDED, POLARIZED
- Shrouding :
- Shrouded - 4 Wall
- Applications :
- General Purpose, Industrial, Telecommunications
- Filter Feature :
- No
- IEC Conformance :
- No
- Mixed Contacts :
- No
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Mounting Type :
- Through Hole, Right Angle
- DIN Conformance :
- No
- Number of Positions Loaded :
- All
- Pbfree Code :
- yes
- Feature :
- Board Lock
- Contact Shape :
- Square
- JESD-609 Code :
- e3
- Insulation Color :
- Natural
- Material Flammability Rating :
- UL94 V-2
- Contact Type :
- Male Pin
- Contact Length - Post :
- 0.138 3.50mm
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Number of Positions :
- 4
- Datasheets
- 0039303047
Mini-Fit Jr 5569 Series 1-Row Header Solder Brass Bulk Through Hole, Right Angle Gold Polyamide (PA66), Nylon 6/6 4-Position Board to Cable/Wire 0.213 5.40mm Height
0039303047 Overview
The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Mini-Fit Jr 5569 Series.To name a few, there is also SHROUDED, POLARIZED.The device could be used for the following application: General Purpose, Industrial, Telecommunications.There are a number of advantages to its Board Lock feature.
0039303047 Features
Mini-Fit Jr 5569 series
0039303047 Applications
There are a lot of Molex
0039303047 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
