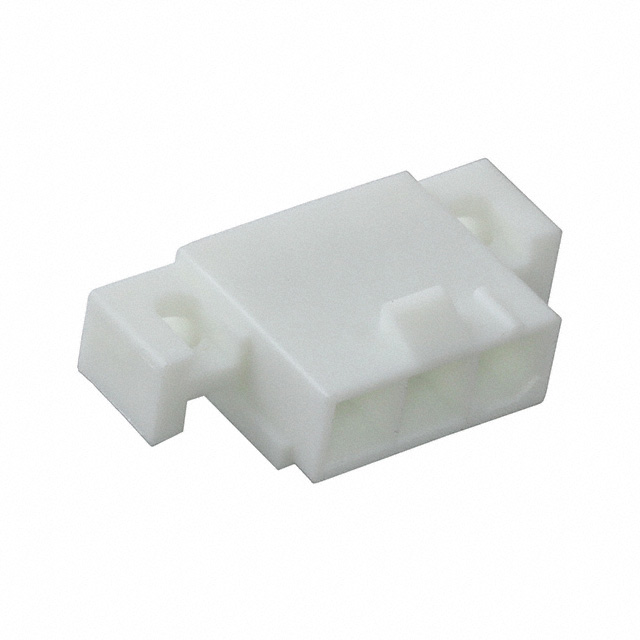

0039303032
Or copy the link below:
- Mfr.Part #
- 0039303032
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 3POS 4.2MM
- Stock
- 2,010
- In Stock ：
- 2,010
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Factory Lead Time :
- 5 Weeks
- Contact Shape :
- Square
- Material Flammability Rating :
- UL94 V-0
- Insulation Color :
- Natural
- Termination :
- Solder
- DIN Conformance :
- No
- Mixed Contacts :
- No
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Material :
- Brass
- Pitch - Mating :
- 0.165 4.20mm
- Contact Type :
- Male Pin
- Series :
- Mini-Fit Jr 5569
- IEC Conformance :
- No
- Mounting Type :
- Through Hole, Right Angle
- RoHS Status :
- ROHS3 Compliant
- MIL Conformance :
- No
- Feature :
- Mounting Flange
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shrouding :
- Shrouded - 4 Wall
- Filter Feature :
- No
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Applications :
- General Purpose, Industrial, Telecommunications
- Number of Rows :
- 1
- Number of Positions Loaded :
- All
- Contact Length - Post :
- 0.138 3.50mm
- JESD-609 Code :
- e3
- Style :
- Board to Cable/Wire
- Additional Feature :
- POLARIZED
- Connector Type :
- Header
- Empty Shell :
- No
- Pbfree Code :
- yes
- UL Flammability Code :
- 94V-0
- Packaging :
- Bulk
- Number of Positions :
- 3
- Contact Finish - Mating :
- Tin
- Insulation Height :
- 0.213 5.40mm
- Fastening Type :
- Locking Ramp
- Datasheets
- 0039303032
0039303032 Documents
Mini-Fit Jr 5569 Series 1-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Polyamide (PA66), Nylon 6/6 3-Position Board to Cable/Wire 0.213 5.40mm Height
0039303032 Overview
The packaging contains Header.There is a Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Bulk.Product number Mini-Fit Jr 5569 belongs to the Mini-Fit Jr 5569 Series.Further, there are features such as POLARIZED, to name only a few.In addition to General Purpose, Industrial, Telecommunications, there are other possible applications for the device.In many ways, it is more powerful due to its Mounting Flange feature.
0039303032 Features
Mini-Fit Jr 5569 series
0039303032 Applications
There are a lot of Molex
0039303032 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
