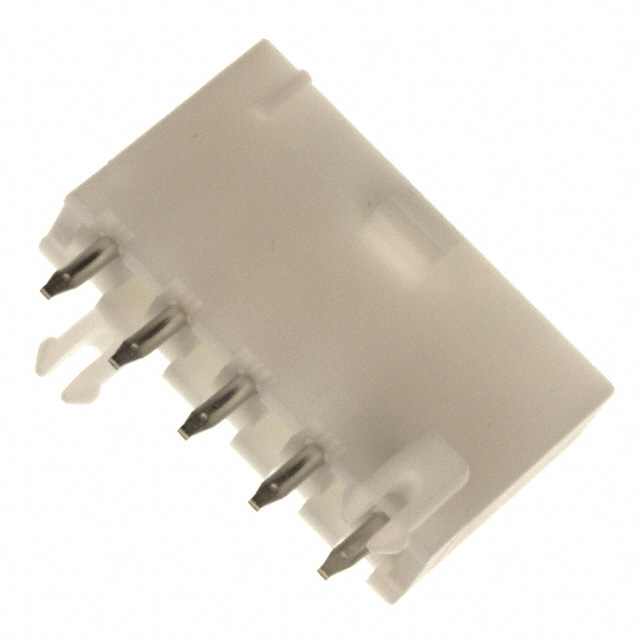

0039302058
Or copy the link below:
- Mfr.Part #
- 0039302058
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 5POS 4.2MM
- Stock
- 4,950
- In Stock ：
- 4,950
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Type :
- Male Pin
- Contact Shape :
- Square
- Contact Length - Post :
- 0.138 3.50mm
- Lead Free :
- Lead Free
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Shrouding :
- Shrouded - 4 Wall
- Fastening Type :
- Locking Ramp
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Color :
- Natural
- Mounting Type :
- Through Hole
- Lead Pitch :
- 4.2mm
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Orientation :
- Vertical
- Max Operating Temperature :
- 105°C
- Termination :
- Solder
- Insulation Resistance :
- 1GOhm
- RoHS Status :
- ROHS3 Compliant
- Number of Rows :
- 1
- Contact Material :
- Brass
- Insulation Height :
- 0.504 12.80mm
- Style :
- Board to Cable/Wire
- Number of Contacts :
- 5
- Applications :
- General Purpose, Industrial, Telecommunications
- Current Rating :
- 8A
- Connector Type :
- Header
- Housing Material :
- Nylon
- Min Operating Temperature :
- -40°C
- Number of Positions Loaded :
- All
- Gender :
- Receptacle
- Series :
- Mini-Fit Jr 5566
- Packaging :
- Tray
- Length :
- 22.2mm
- Feature :
- Board Lock
- Contact Finish - Mating :
- Gold
- Max Voltage Rating (AC) :
- 600V
- Voltage - Rated DC :
- 600V
- Pitch - Mating :
- 0.165 4.20mm
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- 0039302058
Mini-Fit Jr 5566 Series 1-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA66), Nylon 6/6 Board to Cable/Wire 0.504 12.80mm Height
0039302058 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.It belongs to the Mini-Fit Jr 5566 Series of products.It's best to use it when the temperature is below 105°C.This device must operate at a minimum temperature of -40°C.General Purpose, Industrial, Telecommunications is a possible application for the device.Its Board Lock feature renders it more powerful in many ways.
0039302058 Features
Mini-Fit Jr 5566 series
0039302058 Applications
There are a lot of Molex
0039302058 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
