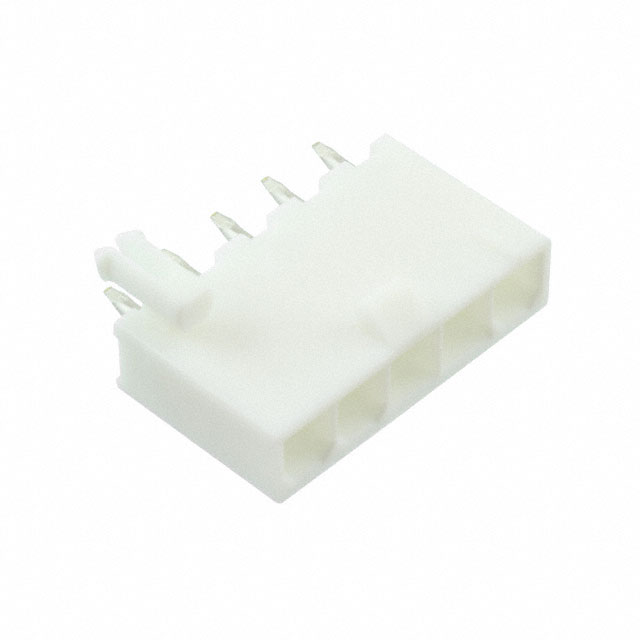

0039302052
Or copy the link below:
- Mfr.Part #
- 0039302052
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 5POS 4.2MM
- Stock
- 15,050
- In Stock ：
- 15,050
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Series :
- Mini-Fit Jr 5566
- Contact Finish - Mating :
- Gold
- Contact Finish - Post :
- Tin
- Packaging :
- Tray
- Contact Type :
- Male Pin
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.504 12.80mm
- Mounting Type :
- Through Hole
- RoHS Status :
- ROHS3 Compliant
- Contact Length - Post :
- 0.138 3.50mm
- Contact Shape :
- Square
- Style :
- Board to Cable/Wire
- Number of Positions :
- 5
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- ECCN Code :
- EAR99
- Feature :
- Board Lock
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 5 Weeks
- Number of Rows :
- 1
- Connector Type :
- Header
- Fastening Type :
- Locking Ramp
- Insulation Color :
- Natural
- Applications :
- General Purpose, Industrial, Telecommunications
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Number of Positions Loaded :
- All
- Pitch - Mating :
- 0.165 4.20mm
- Shrouding :
- Shrouded - 4 Wall
- Contact Material :
- Brass
- Termination :
- Solder
- Datasheets
- 0039302052
Mini-Fit Jr 5566 Series 1-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA66), Nylon 6/6 5-Position Board to Cable/Wire 0.504 12.80mm Height
0039302052 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.This product is part of the Mini-Fit Jr 5566 Series.A possible application for the device is General Purpose, Industrial, Telecommunications.In many ways, its Board Lock feature makes it more powerful.
0039302052 Features
Mini-Fit Jr 5566 series
0039302052 Applications
There are a lot of Molex
0039302052 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
