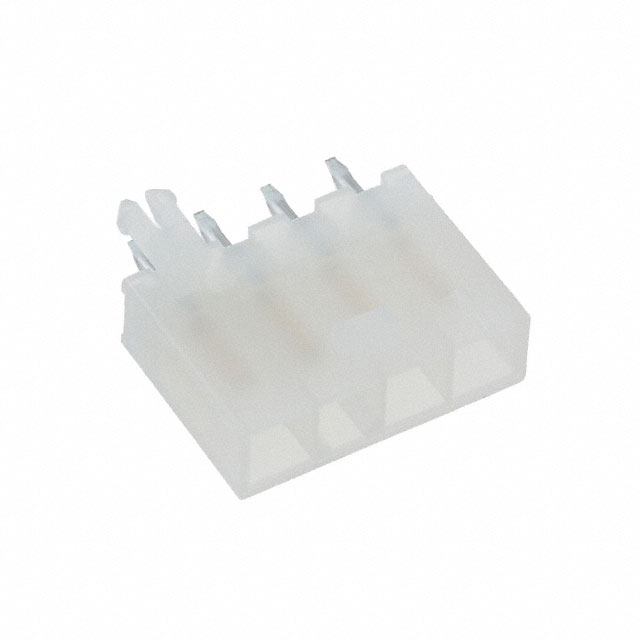

0039302041
Or copy the link below:
- Mfr.Part #
- 0039302041
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 4.2MM
- Stock
- 6,074
- In Stock ：
- 6,074
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Applications :
- General Purpose, Industrial, Telecommunications
- Contact Finish - Mating :
- Gold
- Shrouding :
- Shrouded - 4 Wall
- Pitch - Mating :
- 0.165 4.20mm
- Contact Length - Post :
- 0.138 3.50mm
- Fastening Type :
- Locking Ramp
- Material Flammability Rating :
- UL94 V-2
- Packaging :
- Bulk
- Number of Positions Loaded :
- All
- Series :
- Mini-Fit Jr 5566
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Finish - Post :
- Tin
- Insulation Color :
- Natural
- Termination :
- Solder
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Factory Lead Time :
- 5 Weeks
- Style :
- Board to Cable/Wire
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Through Hole
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Connector Type :
- Header
- Number of Rows :
- 1
- Number of Positions :
- 4
- Feature :
- Board Lock
- Contact Shape :
- Square
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Male Pin
- Insulation Height :
- 0.504 12.80mm
- Contact Material :
- Brass
- Datasheets
- 0039302041
Mini-Fit Jr 5566 Series 1-Row Header Solder Brass Bulk Through Hole Gold Polyamide (PA66), Nylon 6/6 4-Position Board to Cable/Wire 0.504 12.80mm Height
0039302041 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Mini-Fit Jr 5566 Series, it can be found in this category.A possible application of the device would be General Purpose, Industrial, Telecommunications.With its Board Lock feature, it is more powerful in many ways.
0039302041 Features
Mini-Fit Jr 5566 series
0039302041 Applications
There are a lot of Molex
0039302041 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
