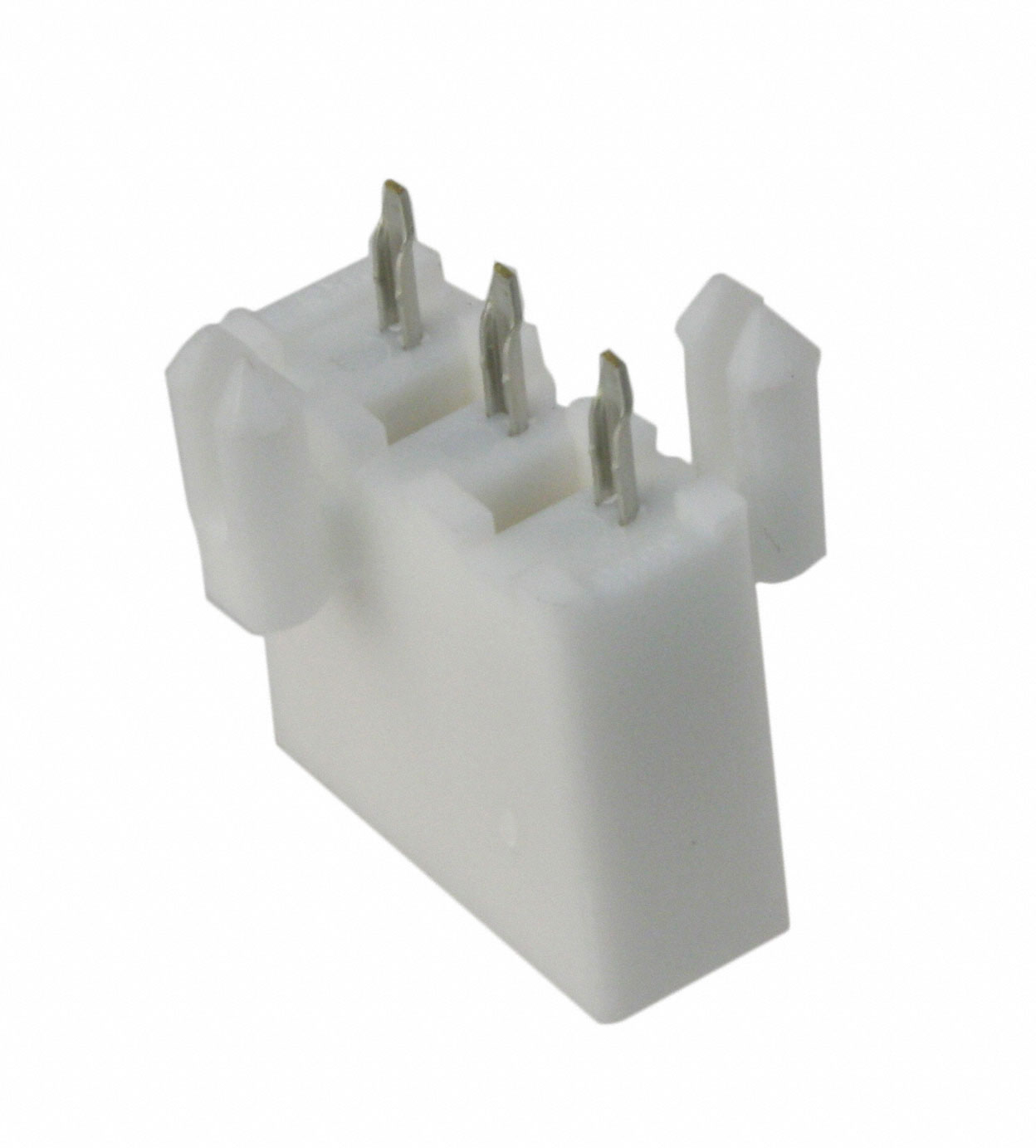

0039302038
Or copy the link below:
- Mfr.Part #
- 0039302038
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 4.2MM
- Stock
- 4,746
- In Stock ：
- 4,746
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Fastening Type :
- Locking Ramp
- Additional Feature :
- POLARIZED
- IEC Conformance :
- No
- Contact Material :
- Brass
- Termination :
- Solder
- Feature :
- Board Lock
- Series :
- Mini-Fit Jr 5566
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Post :
- Tin
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Applications :
- General Purpose, Industrial, Telecommunications
- Connector Type :
- Header
- Packaging :
- Tray
- Mounting Type :
- Through Hole
- MIL Conformance :
- No
- Contact Type :
- Male Pin
- Insulation Color :
- Natural
- Number of Positions :
- 3
- Pbfree Code :
- yes
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- RoHS Status :
- ROHS3 Compliant
- Number of Rows :
- 1
- UL Flammability Code :
- 94V-0
- Contact Finish - Mating :
- Gold
- Pitch - Mating :
- 0.165 4.20mm
- JESD-609 Code :
- e3
- Mixed Contacts :
- No
- Insulation Height :
- 0.490 12.44mm
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Shape :
- Square
- Material Flammability Rating :
- UL94 V-0
- DIN Conformance :
- No
- Filter Feature :
- No
- Style :
- Board to Cable/Wire
- Empty Shell :
- No
- Contact Length - Post :
- 0.138 3.50mm
- Shrouding :
- Shrouded - 4 Wall
- Number of Positions Loaded :
- All
- Datasheets
- 0039302038
0039302038 Documents
Mini-Fit Jr 5566 Series 1-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA66), Nylon 6/6 3-Position Board to Cable/Wire 0.490 12.44mm Height
0039302038 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the Mini-Fit Jr 5566 Series, it can be found in this category.There are also other features such as POLARIZED, to name only a few.A possible application of the device would be General Purpose, Industrial, Telecommunications.With its Board Lock feature, it is more powerful in many ways.
0039302038 Features
Mini-Fit Jr 5566 series
0039302038 Applications
There are a lot of Molex
0039302038 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
