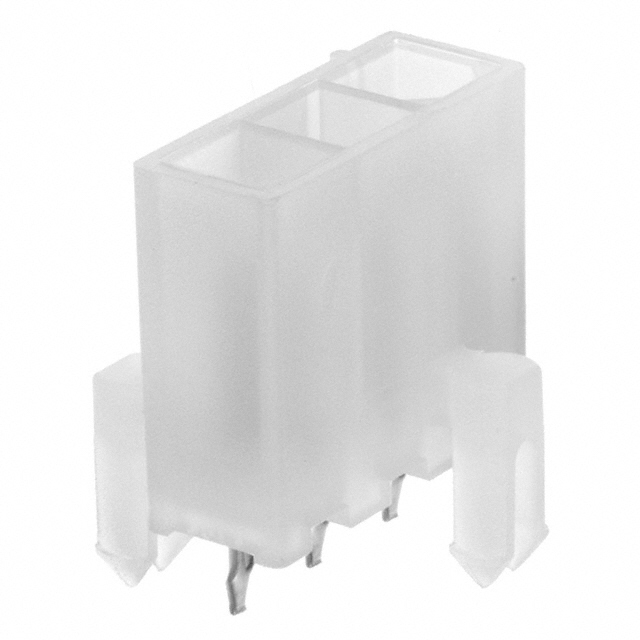

0039302037
Or copy the link below:
- Mfr.Part #
- 0039302037
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 4.2MM
- Stock
- 16,374
- In Stock ：
- 16,374
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Max Operating Temperature :
- 105°C
- Lead Pitch :
- 4.2mm
- Filter Feature :
- No
- Length :
- 13.8mm
- Contact Material :
- Brass
- Contact Length - Post :
- 0.138 3.50mm
- Housing Color :
- Natural
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Pitch - Mating :
- 0.165 4.20mm
- Contact Finish - Mating :
- Gold
- Housing Material :
- Nylon
- Shell Material :
- POLYAMIDE66
- Series :
- Mini-Fit Jr 5566
- Lead Free :
- Lead Free
- ECCN Code :
- EAR99
- Gender :
- Receptacle
- Contact Shape :
- Square
- Mounting Type :
- Through Hole
- Additional Feature :
- MINI-FIT JR., POLARIZED, SHROUDED
- Number of Positions Loaded :
- All
- Min Operating Temperature :
- -40°C
- Contact Type :
- Male Pin
- Applications :
- General Purpose, Industrial, Telecommunications
- UL Flammability Code :
- 94V-2
- Voltage - Rated DC :
- 600V
- DIN Conformance :
- No
- MIL Conformance :
- No
- Style :
- Board to Cable/Wire
- Orientation :
- Vertical
- Pbfree Code :
- yes
- RoHS Status :
- ROHS3 Compliant
- Mount :
- Through Hole
- JESD-609 Code :
- e3
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Number of Rows :
- 1
- Current Rating :
- 9A
- Insulation Resistance :
- 1GOhm
- Termination :
- Solder
- Packaging :
- Tray
- Connector Type :
- Header
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Board Lock
- Insulation Height :
- 0.490 12.44mm
- Empty Shell :
- No
- Fastening Type :
- Locking Ramp
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Post :
- Tin
- Mixed Contacts :
- No
- IEC Conformance :
- No
- Material Flammability Rating :
- UL94 V-2
- Number of Contacts :
- 3
- Max Voltage Rating (AC) :
- 600V
- Datasheets
- 0039302037
0039302037 Documents
Mini-Fit Jr 5566 Series 1-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA66), Nylon 6/6 Board to Cable/Wire 0.490 12.44mm Height
0039302037 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the Mini-Fit Jr 5566 Series, it can be found in this category.There are also other features such as MINI-FIT JR., POLARIZED, SHROUDED, to name only a few.Temperatures below 105°C are best for using it.There's a minimum temperature of -40°C for this device.A possible application of the device would be General Purpose, Industrial, Telecommunications.With its Board Lock feature, it is more powerful in many ways.In this case, Through Hole mounts the part.
0039302037 Features
Mini-Fit Jr 5566 series
0039302037 Applications
There are a lot of Molex
0039302037 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
