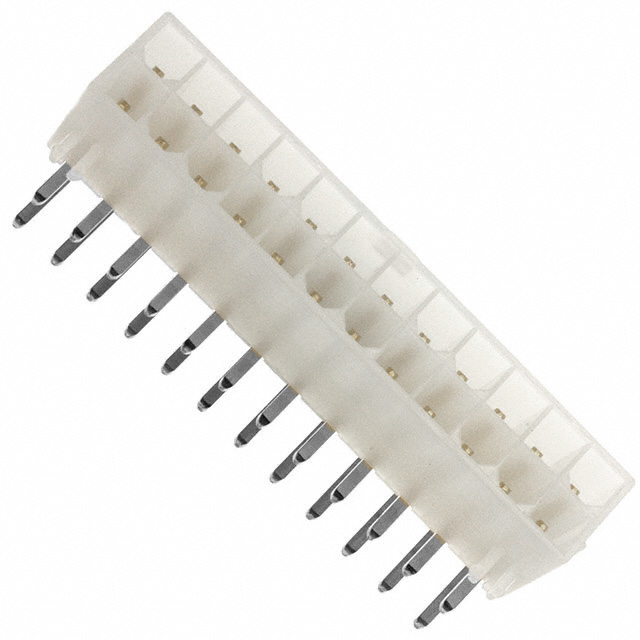

0039301241
Or copy the link below:
- Mfr.Part #
- 0039301241
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 24POS 4.2MM
- Stock
- 153
- In Stock ：
- 153
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Number of Positions Loaded :
- All
- Number of Positions :
- 24
- Contact Material :
- Brass
- Filter Feature :
- No
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- DIN Conformance :
- No
- Additional Feature :
- POLARIZED
- Contact Type :
- Male Pin
- Material Flammability Rating :
- UL94 V-2
- Fastening Type :
- Locking Ramp
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Pitch - Mating :
- 0.165 4.20mm
- IEC Conformance :
- No
- Insulation Color :
- Natural
- JESD-609 Code :
- e3
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Mixed Contacts :
- No
- Feature :
- Board Lock
- Termination :
- Solder
- Shrouding :
- Shrouded - 4 Wall
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole, Right Angle
- Contact Finish - Mating :
- Gold
- Number of Rows :
- 2
- Style :
- Board to Cable/Wire
- Factory Lead Time :
- 6 Weeks
- Packaging :
- Bulk
- Applications :
- General Purpose, Industrial, Telecommunications
- Contact Finish - Post :
- Tin
- Contact Shape :
- Square
- MIL Conformance :
- No
- Series :
- Mini-Fit Jr 5569
- Pbfree Code :
- yes
- RoHS Status :
- ROHS3 Compliant
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Empty Shell :
- No
- Insulation Height :
- 0.378 9.60mm
- Connector Type :
- Header
- Contact Length - Post :
- 0.142 3.60mm
- Datasheets
- 0039301241
0039301241 Documents
Mini-Fit Jr 5569 Series 2-Row Header Solder Brass Bulk Through Hole, Right Angle Gold Polyamide (PA66), Nylon 6/6 24-Position Board to Cable/Wire 0.378 9.60mm Height
0039301241 Overview
A Header package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Bulk case.It is part of the Mini-Fit Jr 5569 Series of products.Additionally, there are other features, such as POLARIZED.It is possible for the device to be used for the application General Purpose, Industrial, Telecommunications.A number of features make it more powerful because of its Board Lock feature.
0039301241 Features
Mini-Fit Jr 5569 series
0039301241 Applications
There are a lot of Molex
0039301241 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
