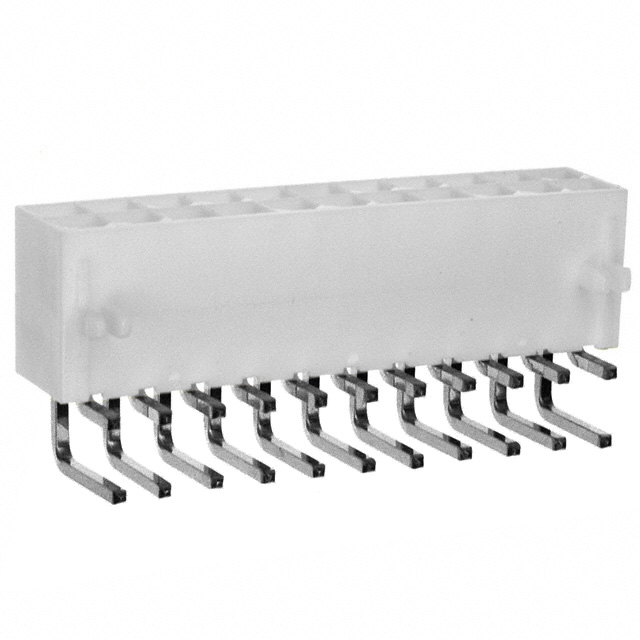

0039301222
Or copy the link below:
- Mfr.Part #
- 0039301222
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 22POS 4.2MM
- Stock
- 20
- In Stock ：
- 20
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Fastening Type :
- Locking Ramp
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Finish - Post :
- Tin
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Number of Positions :
- 22
- Connector Type :
- Header
- Insulation Height :
- 0.378 9.60mm
- Factory Lead Time :
- 8 Weeks
- Number of Positions Loaded :
- All
- Number of Rows :
- 2
- Contact Shape :
- Square
- Material Flammability Rating :
- UL94 V-0
- Contact Finish - Mating :
- Gold
- Feature :
- Board Lock
- Style :
- Board to Cable/Wire
- Contact Material :
- Brass
- Insulation Color :
- Natural
- Contact Type :
- Male Pin
- Applications :
- General Purpose, Industrial, Telecommunications
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Through Hole, Right Angle
- Packaging :
- Bulk
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Termination :
- Solder
- Pitch - Mating :
- 0.165 4.20mm
- Contact Length - Post :
- 0.142 3.60mm
- Shrouding :
- Shrouded - 4 Wall
- Series :
- Mini-Fit Jr 5569
- Datasheets
- 0039301222
Mini-Fit Jr 5569 Series 2-Row Header Solder Brass Bulk Through Hole, Right Angle Gold Polyamide (PA66), Nylon 6/6 22-Position Board to Cable/Wire 0.378 9.60mm Height
0039301222 Overview
Packaging is Header.Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Mini-Fit Jr 5569 Series, it can be found in this category.A possible application of the device would be General Purpose, Industrial, Telecommunications.With its Board Lock feature, it is more powerful in many ways.
0039301222 Features
Mini-Fit Jr 5569 series
0039301222 Applications
There are a lot of Molex
0039301222 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
