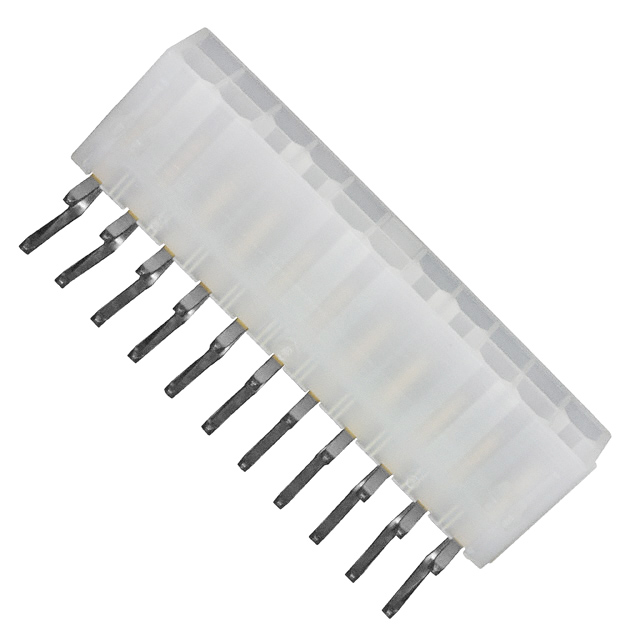

0039301221
Or copy the link below:
- Mfr.Part #
- 0039301221
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 22POS 4.2MM
- Stock
- 465
- In Stock ：
- 465
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Filter Feature :
- No
- Number of Positions Loaded :
- All
- Shrouding :
- Shrouded - 4 Wall
- Termination :
- Solder
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Board Lock
- Insulation Color :
- Natural
- HTS Code :
- 8536.69.40.30
- Contact Shape :
- Square
- Pitch - Mating :
- 0.165 4.20mm
- Mounting Type :
- Through Hole, Right Angle
- Number of Rows :
- 2
- DIN Conformance :
- No
- Empty Shell :
- No
- Contact Material :
- Brass
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Type :
- Male Pin
- Connector Type :
- Header
- Contact Finish - Mating :
- Gold
- MIL Conformance :
- No
- Fastening Type :
- Locking Ramp
- Applications :
- General Purpose, Industrial, Telecommunications
- Row Spacing - Mating :
- 0.165 (4.20mm)
- JESD-609 Code :
- e3
- ECCN Code :
- EAR99
- Style :
- Board to Cable/Wire
- Number of Positions :
- 22
- Packaging :
- Bulk
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- IEC Conformance :
- No
- Insulation Height :
- 0.378 9.60mm
- Series :
- Mini-Fit Jr 5569
- Mixed Contacts :
- No
- RoHS Status :
- ROHS3 Compliant
- Contact Finish - Post :
- Tin
- Material Flammability Rating :
- UL94 V-2
- Additional Feature :
- POLARIZED
- Pbfree Code :
- yes
- Contact Length - Post :
- 0.142 3.60mm
- Factory Lead Time :
- 5 Weeks
- Datasheets
- 0039301221
0039301221 Documents
Mini-Fit Jr 5569 Series 2-Row Header Solder Brass Bulk Through Hole, Right Angle Gold Polyamide (PA66), Nylon 6/6 22-Position Board to Cable/Wire 0.378 9.60mm Height
0039301221 Overview
A Header package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Bulk case.It is part of the Mini-Fit Jr 5569 Series of products.Additionally, there are other features, such as POLARIZED.It is possible for the device to be used for the application General Purpose, Industrial, Telecommunications.A number of features make it more powerful because of its Board Lock feature.
0039301221 Features
Mini-Fit Jr 5569 series
0039301221 Applications
There are a lot of Molex
0039301221 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
