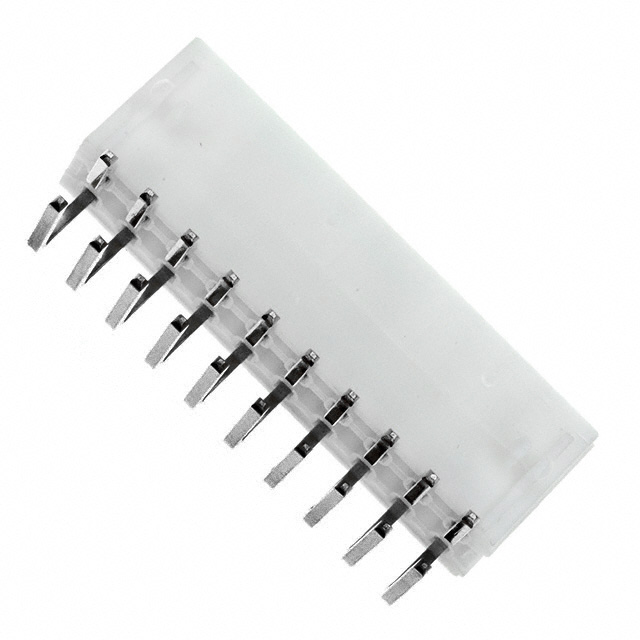

0039301202
Or copy the link below:
- Mfr.Part #
- 0039301202
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 20POS 4.2MM
- Stock
- 480
- In Stock ：
- 480
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Mixed Contacts :
- No
- Fastening Type :
- Locking Ramp
- Series :
- Mini-Fit Jr 5569
- Housing Color :
- Natural
- Material Flammability Rating :
- UL94 V-0
- Lead Free :
- Lead Free
- Empty Shell :
- No
- Number of Rows :
- 2
- Additional Feature :
- POLARIZED
- Insulation Resistance :
- 1GOhm
- Insulation Height :
- 0.378 9.60mm
- Contact Gender :
- Male
- JESD-609 Code :
- e3
- IEC Conformance :
- No
- Max Operating Temperature :
- 105°C
- Contact Type :
- Male Pin
- Contact Finish - Mating :
- Gold
- Pbfree Code :
- yes
- Feature :
- Board Lock
- Housing Material :
- Nylon
- Voltage - Rated :
- 600V
- Number of Positions Loaded :
- All
- Flammability Rating :
- UL94 V-0
- Voltage - Rated DC :
- 600V
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Packaging :
- Bulk
- Orientation :
- RIGHT ANGLE
- Mounting Type :
- Through Hole, Right Angle
- Contact Shape :
- Square
- UL Flammability Code :
- 94V-0
- REACH SVHC :
- No SVHC
- Glow Wire Compliant :
- Non-Compliant
- Mount :
- Through Hole
- Applications :
- General Purpose, Industrial, Telecommunications
- Contact Finish - Post :
- Tin
- Min Operating Temperature :
- -40°C
- Pitch - Mating :
- 0.165 4.20mm
- Radiation Hardening :
- No
- RoHS Status :
- ROHS3 Compliant
- Gender :
- FEMALE
- DIN Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Header
- Contact Length - Post :
- 0.142 3.60mm
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Style :
- Board to Cable/Wire
- Number of Contacts :
- 20
- Shrouding :
- Shrouded - 4 Wall
- Filter Feature :
- No
- Halogen Free :
- Low Halogen
- ELV :
- Compliant
- Factory Lead Time :
- 5 Weeks
- MIL Conformance :
- No
- Current Rating :
- 6A
- Contact Material :
- Brass
- Lead Pitch :
- 4.2mm
- Termination :
- Solder
- Datasheets
- 0039301202
0039301202 Documents
Mini-Fit Jr 5569 Series 2-Row Header Solder Brass Bulk Through Hole, Right Angle Gold Polyamide (PA66), Nylon 6/6 Board to Cable/Wire 0.378 9.60mm Height
0039301202 Overview
The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Mini-Fit Jr 5569 Series.To name a few, there is also POLARIZED.When the temperature is below 105°C, it is best to use it.A minimum operating temperature of -40°C is required for this device.The device could be used for the following application: General Purpose, Industrial, Telecommunications.There are a number of advantages to its Board Lock feature.Part Through Hole is mounted to the part.
