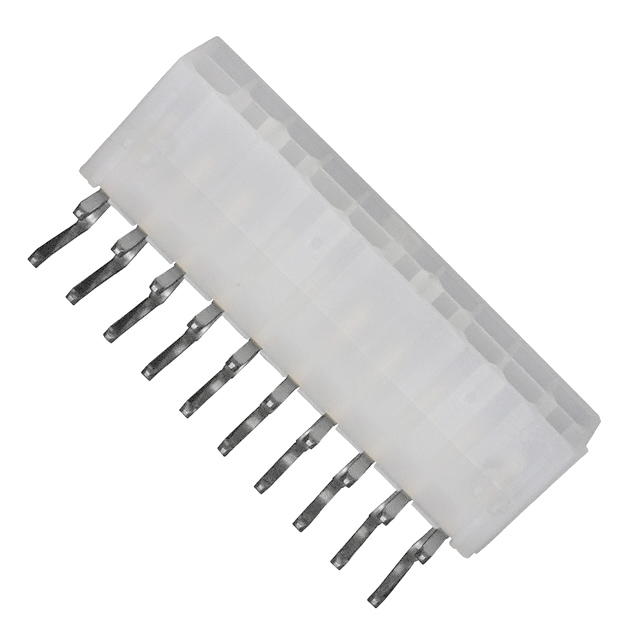

0039301201
Or copy the link below:
- Mfr.Part #
- 0039301201
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 20POS 4.2MM
- Stock
- 771
- In Stock ：
- 771
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Number of Positions :
- 20
- Number of Rows :
- 2
- Mounting Type :
- Through Hole, Right Angle
- Shrouding :
- Shrouded - 4 Wall
- Feature :
- Board Lock
- Insulation Height :
- 0.378 9.60mm
- Number of Positions Loaded :
- All
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Applications :
- General Purpose, Industrial, Telecommunications
- Contact Finish - Mating :
- Gold
- Contact Length - Post :
- 0.142 3.60mm
- Contact Type :
- Male Pin
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Connector Type :
- Header
- Factory Lead Time :
- 6 Weeks
- Series :
- Mini-Fit Jr 5569
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Packaging :
- Bulk
- Material Flammability Rating :
- UL94 V-2
- Contact Finish - Post :
- Tin
- Fastening Type :
- Locking Ramp
- Insulation Color :
- Natural
- Style :
- Board to Cable/Wire
- Termination :
- Solder
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Pitch - Mating :
- 0.165 4.20mm
- Contact Material :
- Brass
- Contact Shape :
- Square
- Datasheets
- 0039301201
Mini-Fit Jr 5569 Series 2-Row Header Solder Brass Bulk Through Hole, Right Angle Gold Polyamide (PA66), Nylon 6/6 20-Position Board to Cable/Wire 0.378 9.60mm Height
0039301201 Overview
Packaging is Header.Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Mini-Fit Jr 5569 Series, it can be found in this category.A possible application of the device would be General Purpose, Industrial, Telecommunications.With its Board Lock feature, it is more powerful in many ways.
0039301201 Features
Mini-Fit Jr 5569 series
0039301201 Applications
There are a lot of Molex
0039301201 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
