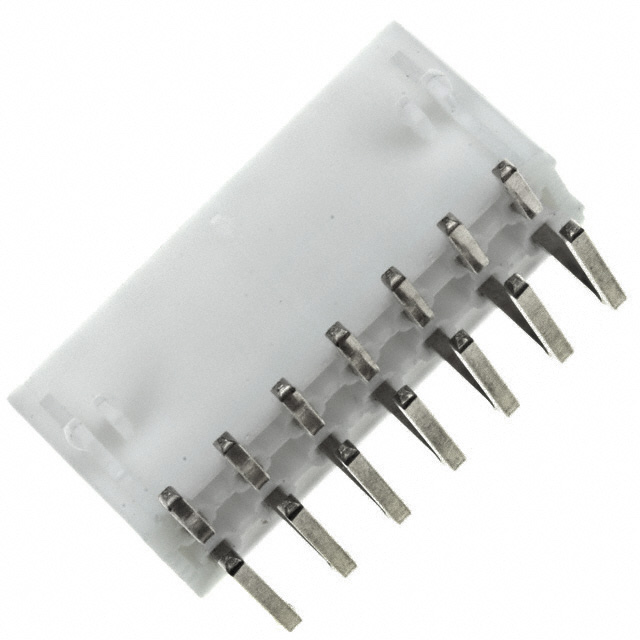

0039301142
Or copy the link below:
- Mfr.Part #
- 0039301142
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 14POS 4.2MM
- Stock
- 2,461
- In Stock ：
- 2,461
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish - Post :
- Tin
- Feature :
- Board Lock
- Number of Positions :
- 14
- UL Flammability Code :
- 94V-0
- Mounting Type :
- Through Hole, Right Angle
- Contact Material :
- Brass
- IEC Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Length - Post :
- 0.142 3.60mm
- Pitch - Mating :
- 0.165 4.20mm
- Shrouding :
- Shrouded - 4 Wall
- Termination :
- Solder
- Fastening Type :
- Locking Ramp
- Additional Feature :
- POLARIZED
- Mixed Contacts :
- No
- Connector Type :
- Header
- Contact Shape :
- Square
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Number of Rows :
- 2
- JESD-609 Code :
- e3
- MIL Conformance :
- No
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Style :
- Board to Cable/Wire
- Insulation Height :
- 0.378 9.60mm
- Applications :
- General Purpose, Industrial, Telecommunications
- Packaging :
- Bulk
- Number of Positions Loaded :
- All
- DIN Conformance :
- No
- Filter Feature :
- No
- RoHS Status :
- ROHS3 Compliant
- Empty Shell :
- No
- Insulation Color :
- Natural
- Contact Type :
- Male Pin
- Material Flammability Rating :
- UL94 V-0
- Series :
- Mini-Fit Jr 5569
- Factory Lead Time :
- 5 Weeks
- Pbfree Code :
- yes
- Contact Finish - Mating :
- Gold
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Datasheets
- 0039301142
0039301142 Documents
Mini-Fit Jr 5569 Series 2-Row Header Solder Brass Bulk Through Hole, Right Angle Gold Polyamide (PA66), Nylon 6/6 14-Position Board to Cable/Wire 0.378 9.60mm Height
0039301142 Overview
You get it in Header packaging.Mounting type Through Hole, Right Angle is selected for the device.Packaged in a Bulk case.A member of the Mini-Fit Jr 5569 Series.Besides that, there's also POLARIZED, to name a few.Here's a possible application for the device: General Purpose, Industrial, Telecommunications.This feature renders it more powerful in a number of ways because of its Board Lock feature.
0039301142 Features
Mini-Fit Jr 5569 series
0039301142 Applications
There are a lot of Molex
0039301142 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
