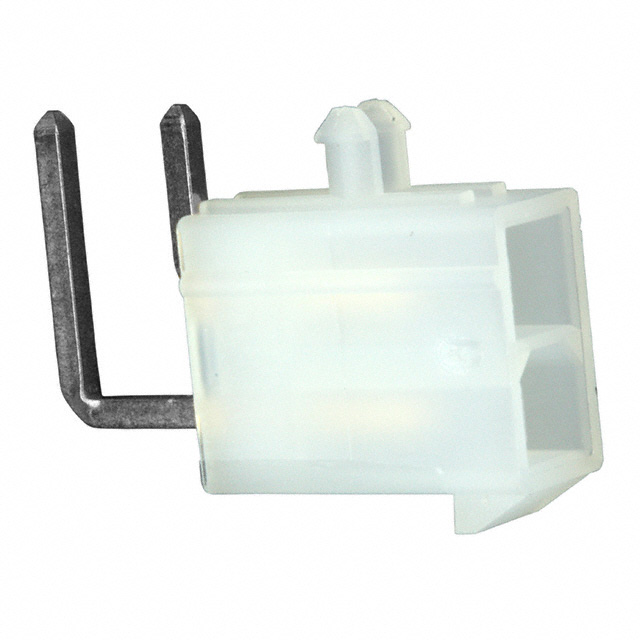

0039301021
Or copy the link below:
- Mfr.Part #
- 0039301021
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 2POS
- Stock
- 4,652
- In Stock ：
- 4,652
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Empty Shell :
- No
- Pbfree Code :
- yes
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Packaging :
- Bulk
- Insulation Color :
- Natural
- Additional Feature :
- POLARIZED, SHROUDED
- Feature :
- Board Lock
- Filter Feature :
- No
- Contact Type :
- Male Pin
- Factory Lead Time :
- 5 Weeks
- JESD-609 Code :
- e3
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Number of Positions Loaded :
- All
- Series :
- Mini-Fit Jr 5569
- RoHS Status :
- ROHS3 Compliant
- Fastening Type :
- Locking Ramp
- Mounting Type :
- Through Hole, Right Angle
- Termination :
- Solder
- Contact Length - Post :
- 0.142 3.60mm
- IEC Conformance :
- No
- Contact Finish - Mating :
- Gold
- Contact Material :
- Brass
- Number of Positions :
- 2
- MIL Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Material Flammability Rating :
- UL94 V-2
- Connector Type :
- Header
- Contact Finish - Post :
- Tin
- DIN Conformance :
- No
- Mixed Contacts :
- No
- Contact Shape :
- Square
- Insulation Height :
- 0.378 9.60mm
- Style :
- Board to Cable/Wire
- Applications :
- General Purpose, Industrial, Telecommunications
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Datasheets
- 0039301021
0039301021 Documents
Mini-Fit Jr 5569 Series Header Solder Brass Bulk Through Hole, Right Angle Gold Polyamide (PA66), Nylon 6/6 2-Position Board to Cable/Wire 0.378 9.60mm Height
0039301021 Overview
It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Bulk case is used.It belongs to the Mini-Fit Jr 5569 Series of products.In addition, there are other features such as POLARIZED, SHROUDED, to mention only a few.General Purpose, Industrial, Telecommunications is a possible application for the device.Its Board Lock feature renders it more powerful in many ways.
0039301021 Features
Mini-Fit Jr 5569 series
0039301021 Applications
There are a lot of Molex
0039301021 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
