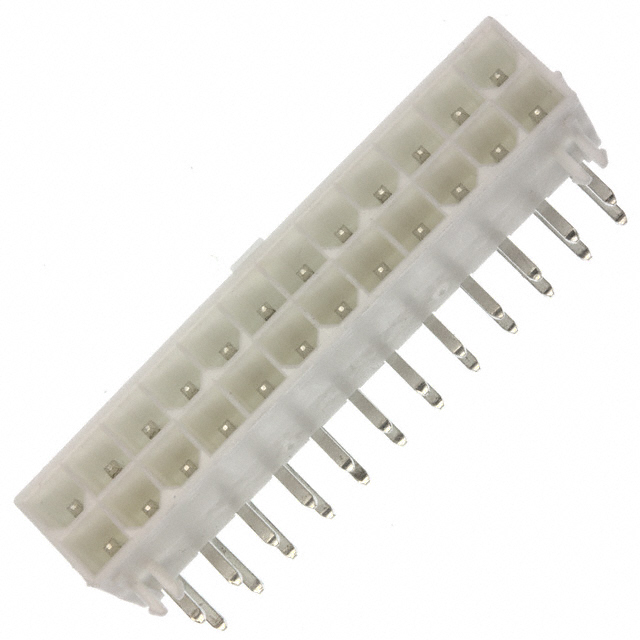

0039300240
Or copy the link below:
- Mfr.Part #
- 0039300240
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 24POS 4.2MM
- Stock
- 547
- In Stock ：
- 547
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Shrouding :
- Shrouded - 4 Wall
- Termination :
- Solder
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- RoHS Status :
- ROHS3 Compliant
- Applications :
- General Purpose, Industrial, Telecommunications
- Current Rating :
- 6A
- Insulation Height :
- 0.378 9.60mm
- REACH SVHC :
- No SVHC
- Pitch :
- 4.2mm
- Material :
- Brass
- Contact Finish - Post :
- Tin
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Series :
- Mini-Fit Jr 5569
- Feature :
- Board Lock
- Halogen Free :
- Low Halogen
- Contact Gender :
- Male
- Contact Plating :
- Tin
- Glow Wire Compliant :
- Non-Compliant
- Housing Color :
- Natural
- Number of Contacts :
- 24
- Contact Length - Post :
- 0.142 3.60mm
- Material Flammability Rating :
- UL94 V-0
- Contact Shape :
- Square
- Gender :
- Male
- Pitch - Mating :
- 0.165 4.20mm
- Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Orientation :
- RIGHT ANGLE
- Fastening Type :
- Locking Ramp
- Factory Lead Time :
- 8 Weeks
- Number of Positions :
- 24
- ELV :
- Compliant
- Housing Material :
- Nylon
- Mounting Type :
- Through Hole, Right Angle
- Insulation Color :
- Natural
- Number of Positions Loaded :
- All
- Color :
- Natural, White
- Number of Circuits :
- 24
- Contact Material :
- Brass
- Contact Type :
- Male Pin
- Mount :
- Through Hole
- Min Operating Temperature :
- -40°C
- Voltage - Rated DC :
- 600V
- Voltage - Rated :
- 600V
- Connector Type :
- Header
- Number of Rows :
- 2
- Lead Free :
- Lead Free
- Contact Finish - Mating :
- Tin
- Radiation Hardening :
- No
- Lead Pitch :
- 4.2mm
- Max Operating Temperature :
- 105°C
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Packaging :
- Bulk
- Style :
- Board to Cable/Wire
- Datasheets
- 0039300240
0039300240 Documents
Mini-Fit Jr 5569 Series 2-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Polyamide (PA66), Nylon 6/6 24-Position Board to Cable/Wire 0.378 9.60mm Height
0039300240 Overview
This product is packaged in a Header cartonThis device's mounting type is Through Hole, Right Angle.It's packaged in a Bulk case.Mini-Fit Jr 5569 Series product.The best time to use this device is when the temperature is below 105°C.It has to be at least -40°C degrees to work.General Purpose, Industrial, Telecommunications is one possible application.Its Board Lock feature makes it more powerful in a number of ways.Through Hole is mounting the part.Part 24 consists of circuits of 0 ohms.
0039300240 Features
Mini-Fit Jr 5569 series
0039300240 Applications
There are a lot of Molex
0039300240 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
