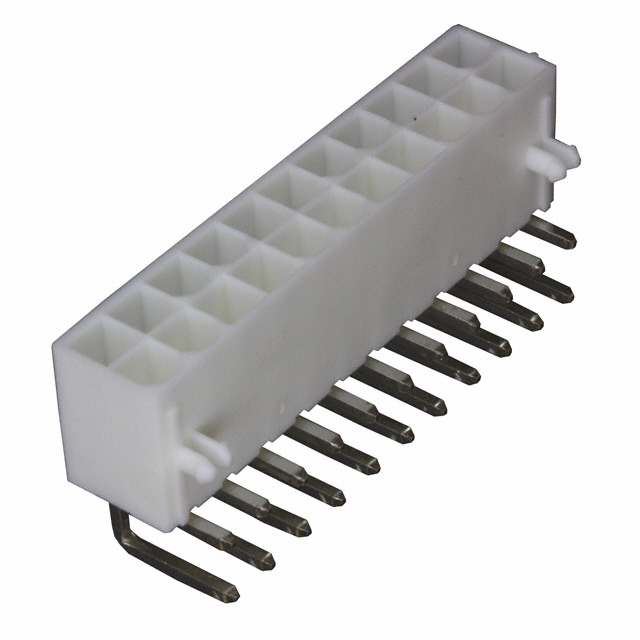

0039300220
Or copy the link below:
- Mfr.Part #
- 0039300220
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 22POS 4.2MM
- Stock
- 450
- In Stock ：
- 450
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Insulation Color :
- Natural
- RoHS Status :
- ROHS3 Compliant
- Number of Positions Loaded :
- All
- Packaging :
- Bulk
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Contact Finish - Mating :
- Tin
- Feature :
- Board Lock
- Pitch - Mating :
- 0.165 4.20mm
- Contact Material :
- Brass
- Applications :
- General Purpose, Industrial, Telecommunications
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Contact Shape :
- Square
- Style :
- Board to Cable/Wire
- Number of Positions :
- 22
- Fastening Type :
- Locking Ramp
- Contact Finish - Post :
- Tin
- Contact Type :
- Male Pin
- Number of Rows :
- 2
- Shrouding :
- Shrouded - 4 Wall
- Connector Type :
- Header
- Series :
- Mini-Fit Jr 5569
- Factory Lead Time :
- 7 Weeks
- Contact Length - Post :
- 0.142 3.60mm
- Mounting Type :
- Through Hole, Right Angle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Height :
- 0.378 9.60mm
- Datasheets
- 0039300220
0039300220 Documents
Mini-Fit Jr 5569 Series 2-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Polyamide (PA66), Nylon 6/6 22-Position Board to Cable/Wire 0.378 9.60mm Height
0039300220 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole, Right Angle.A Bulk case is used to package the product.A product of the Mini-Fit Jr 5569 Series, it belongs to the range of products of that series.This device may be used for the purpose of General Purpose, Industrial, Telecommunications.A number of features make the Board Lock feature more powerful.
0039300220 Features
Mini-Fit Jr 5569 series
0039300220 Applications
There are a lot of Molex
0039300220 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
