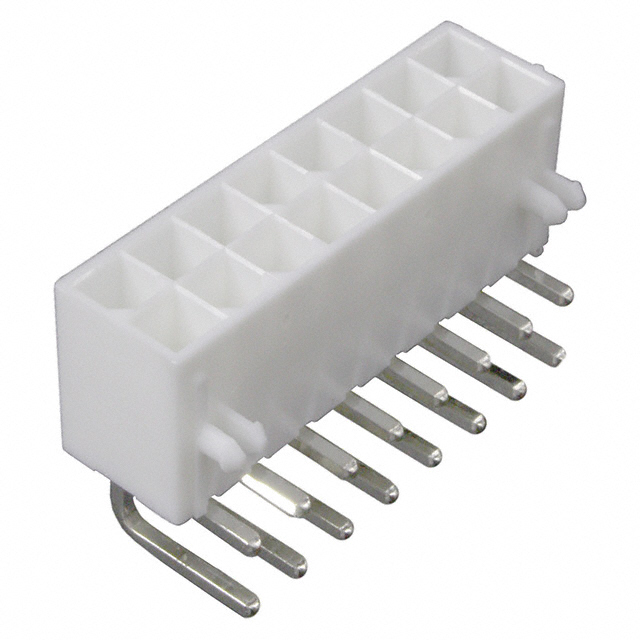

0039300160
Or copy the link below:
- Mfr.Part #
- 0039300160
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 16POS 4.2MM
- Stock
- 1,426
- In Stock ：
- 1,426
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Number of Rows :
- 2
- Feature :
- Board Lock
- Shrouding :
- Shrouded - 4 Wall
- Style :
- Board to Cable/Wire
- Termination :
- Solder
- Contact Type :
- Male Pin
- Insulation Color :
- Natural
- Applications :
- General Purpose, Industrial, Telecommunications
- Pitch - Mating :
- 0.165 4.20mm
- Series :
- Mini-Fit Jr 5569
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- Contact Finish - Mating :
- Tin
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Insulation Height :
- 0.378 9.60mm
- RoHS Status :
- ROHS3 Compliant
- Fastening Type :
- Locking Ramp
- Number of Positions :
- 16
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Material :
- Brass
- Contact Length - Post :
- 0.142 3.60mm
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Contact Shape :
- Square
- Connector Type :
- Header
- Packaging :
- Bulk
- Number of Positions Loaded :
- All
- Mounting Type :
- Through Hole, Right Angle
- Factory Lead Time :
- 5 Weeks
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- 0039300160
0039300160 Documents
Mini-Fit Jr 5569 Series 2-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Polyamide (PA66), Nylon 6/6 16-Position Board to Cable/Wire 0.378 9.60mm Height
0039300160 Overview
Packaging is Header.Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Mini-Fit Jr 5569 Series, it can be found in this category.A possible application of the device would be General Purpose, Industrial, Telecommunications.With its Board Lock feature, it is more powerful in many ways.
0039300160 Features
Mini-Fit Jr 5569 series
0039300160 Applications
There are a lot of Molex
0039300160 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
