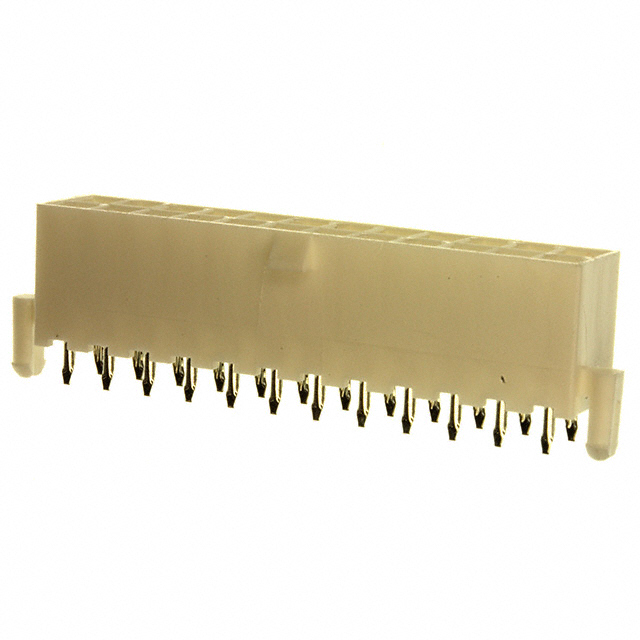

0039299246
Or copy the link below:
- Mfr.Part #
- 0039299246
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 24POS 4.2MM
- Stock
- 4,738
- In Stock ：
- 4,738
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Style :
- Board to Cable/Wire
- Series :
- Mini-Fit Jr 5566
- Shrouding :
- Shrouded - 4 Wall
- Number of Positions Loaded :
- All
- Insulation Height :
- 0.504 12.80mm
- Applications :
- General Purpose, Industrial, Telecommunications
- Mounting Type :
- Through Hole
- Contact Finish Thickness - Mating :
- 35.4μin 0.90μm
- Contact Finish - Mating :
- Tin
- Contact Material :
- Brass
- Termination :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 6 Weeks
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Packaging :
- Tray
- Number of Rows :
- 2
- Contact Length - Post :
- 0.138 3.50mm
- Contact Shape :
- Square
- Feature :
- Board Lock
- Contact Finish Thickness - Post :
- 35.0μin 0.90μm
- Material Flammability Rating :
- UL94 V-0
- Fastening Type :
- Locking Ramp
- Insulation Color :
- Natural
- Number of Positions :
- 24
- Pitch - Mating :
- 0.165 4.20mm
- Connector Type :
- Header
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Type :
- Male Pin
- Datasheets
- 0039299246
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 24-Position Board to Cable/Wire 0.504 12.80mm Height
0039299246 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number Mini-Fit Jr 5566 belongs to the Mini-Fit Jr 5566 Series.In addition to General Purpose, Industrial, Telecommunications, there are other possible applications for the device.In many ways, it is more powerful due to its Board Lock feature.
0039299246 Features
Mini-Fit Jr 5566 series
0039299246 Applications
There are a lot of Molex
0039299246 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
