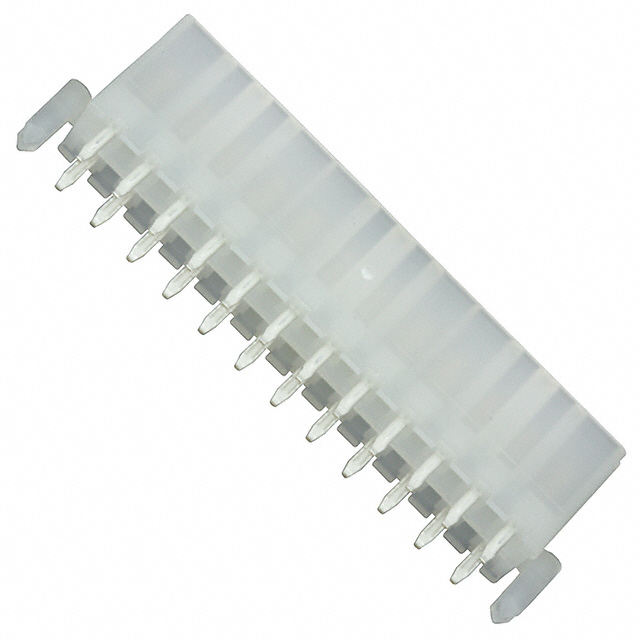

0039299244
Or copy the link below:
- Mfr.Part #
- 0039299244
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 24POS 4.2MM
- Stock
- 1,783
- In Stock ：
- 1,783
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Factory Lead Time :
- 6 Weeks
- Mounting Type :
- Through Hole
- Material Flammability Rating :
- UL94 V-2
- Shrouding :
- Shrouded - 4 Wall
- Style :
- Board to Cable/Wire
- Contact Shape :
- Square
- Insulation Height :
- 0.504 12.80mm
- Number of Rows :
- 2
- Packaging :
- Tray
- Contact Material :
- Brass
- Series :
- Mini-Fit Jr 5566
- Applications :
- General Purpose, Industrial, Telecommunications
- Number of Positions Loaded :
- All
- RoHS Status :
- ROHS3 Compliant
- Insulation Color :
- Natural
- Contact Finish - Post :
- Tin
- Contact Length - Post :
- 0.138 3.50mm
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Connector Type :
- Header
- Contact Finish - Mating :
- Gold
- Number of Positions :
- 24
- Feature :
- Board Lock
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Pitch - Mating :
- 0.165 4.20mm
- Contact Type :
- Male Pin
- Fastening Type :
- Locking Ramp
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Datasheets
- 0039299244
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA66), Nylon 6/6 24-Position Board to Cable/Wire 0.504 12.80mm Height
0039299244 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Tray case is used to package the product.A product of the Mini-Fit Jr 5566 Series, it belongs to the range of products of that series.This device may be used for the purpose of General Purpose, Industrial, Telecommunications.A number of features make the Board Lock feature more powerful.
0039299244 Features
Mini-Fit Jr 5566 series
0039299244 Applications
There are a lot of Molex
0039299244 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
