- Mfr.Part #
- 0039299209
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description

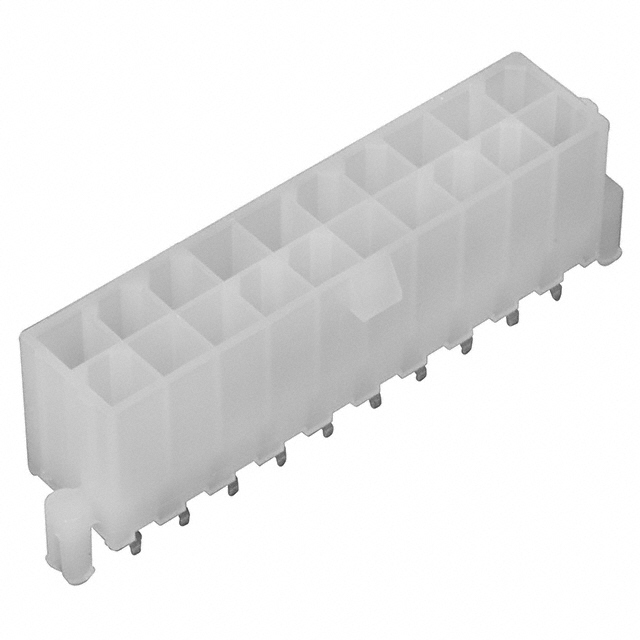

- CONN HEADER VERT 20POS 4.2MM
- Stock
- 2,097
- In Stock ：
- 2,097
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Insulation Color :
- Natural
- Contact Shape :
- Square
- Length :
- 40.15mm
- Contact Type :
- Male Pin
- Gender :
- Receptacle
- Housing Color :
- Black
- Housing Material :
- Nylon
- Number of Rows :
- 2
- Max Current Rating :
- 5A
- Orientation :
- Vertical
- Number of Contacts :
- 20
- Material Flammability Rating :
- UL94 V-0
- Pitch :
- 4.2mm
- Halogen Free :
- Low Halogen
- Applications :
- General Purpose, Industrial, Telecommunications
- Depth :
- 8.77mm
- Contact Plating :
- Gold
- Connector Type :
- Header
- Number of Circuits :
- 20
- Contact Finish - Post :
- Tin
- Contact Length - Post :
- 0.138 3.50mm
- Fastening Type :
- Locking Ramp
- Height :
- 9.91mm
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Number of Positions :
- 20
- Contact Finish - Mating :
- Gold
- Packaging :
- Tray
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Insulation Height :
- 0.504 12.80mm
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Shrouding :
- Shrouded - 4 Wall
- Mount :
- Through Hole
- Voltage - Rated :
- 600V
- Current Rating :
- 6A
- Max Operating Temperature :
- 105°C
- Series :
- Mini-Fit Jr 5566
- Style :
- Board to Cable/Wire
- Insulation Resistance :
- 1GOhm
- Factory Lead Time :
- 5 Weeks
- Voltage - Rated DC :
- 600V
- Flammability Rating :
- UL94 V-0
- Color :
- White
- Lead Pitch :
- 4.2mm
- Contact Resistance :
- 10MOhm
- Radiation Hardening :
- No
- Number of Positions Loaded :
- All
- Glow Wire Compliant :
- Non-Compliant
- Feature :
- Board Lock
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- RoHS Status :
- ROHS3 Compliant
- Contact Gender :
- Male
- Mounting Type :
- Through Hole
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Min Operating Temperature :
- -40°C
- Pitch - Mating :
- 0.165 4.20mm
- Contact Material :
- Brass
- Datasheets
- 0039299209
0039299209 Documents
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA66), Nylon 6/6 20-Position Board to Cable/Wire 0.504 12.80mm Height
0039299209 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number Mini-Fit Jr 5566 belongs to the Mini-Fit Jr 5566 Series.Whenever the temperature is below 105°C, it's best.There is a minimum temperature requirement of [0°C] for this device.In addition to General Purpose, Industrial, Telecommunications, there are other possible applications for the device.In many ways, it is more powerful due to its Board Lock feature.There is a Through Hole mount on the part.Circuits number 20 comprise the part.
