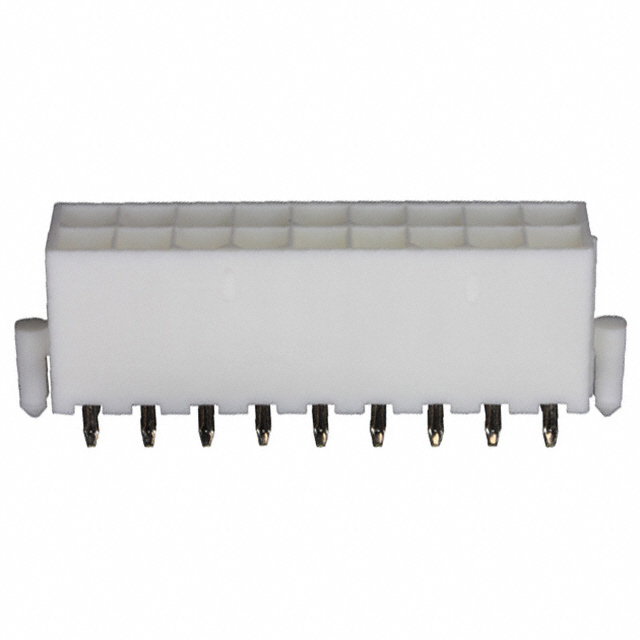

0039299186
Or copy the link below:
- Mfr.Part #
- 0039299186
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 18POS 4.2MM
- Stock
- 1,648
- In Stock ：
- 1,648
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Mating :
- Tin
- Series :
- Mini-Fit Jr 5566
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Contact Type :
- Male Pin
- Contact Shape :
- Square
- Contact Finish Thickness - Mating :
- 35.4μin 0.90μm
- Fastening Type :
- Locking Ramp
- Packaging :
- Tray
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Number of Positions :
- 18
- Contact Material :
- Brass
- Style :
- Board to Cable/Wire
- Contact Finish Thickness - Post :
- 35.0μin 0.90μm
- Insulation Height :
- 0.504 12.80mm
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Feature :
- Board Lock
- Connector Type :
- Header
- Insulation Color :
- Natural
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 6 Weeks
- Mounting Type :
- Through Hole
- Number of Rows :
- 2
- RoHS Status :
- ROHS3 Compliant
- Contact Length - Post :
- 0.138 3.50mm
- Applications :
- General Purpose, Industrial, Telecommunications
- Shrouding :
- Shrouded - 4 Wall
- Pitch - Mating :
- 0.165 4.20mm
- Datasheets
- 0039299186
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 18-Position Board to Cable/Wire 0.504 12.80mm Height
0039299186 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number Mini-Fit Jr 5566 belongs to the Mini-Fit Jr 5566 Series.In addition to General Purpose, Industrial, Telecommunications, there are other possible applications for the device.In many ways, it is more powerful due to its Board Lock feature.
0039299186 Features
Mini-Fit Jr 5566 series
0039299186 Applications
There are a lot of Molex
0039299186 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
