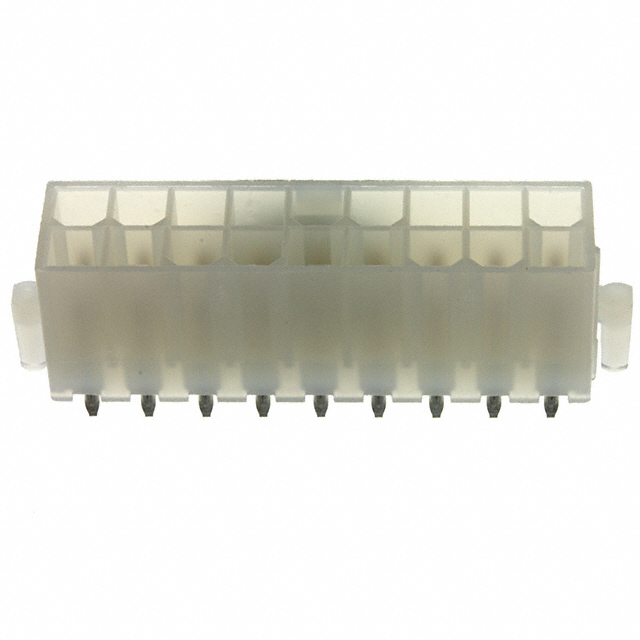

0039299184
Or copy the link below:
- Mfr.Part #
- 0039299184
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 18POS 4.2MM
- Stock
- 970
- In Stock ：
- 970
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Material Flammability Rating :
- UL94 V-2
- Connector Type :
- Header
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 6 Weeks
- Insulation Height :
- 0.504 12.80mm
- Contact Finish - Mating :
- Gold
- Pitch - Mating :
- 0.165 4.20mm
- Series :
- Mini-Fit Jr 5566
- Contact Material :
- Brass
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Fastening Type :
- Locking Ramp
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Applications :
- General Purpose, Industrial, Telecommunications
- Feature :
- Board Lock
- Number of Positions Loaded :
- All
- Contact Finish - Post :
- Tin
- Number of Rows :
- 2
- Number of Positions :
- 18
- Termination :
- Solder
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Insulation Color :
- Natural
- Contact Shape :
- Square
- Style :
- Board to Cable/Wire
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Packaging :
- Tray
- RoHS Status :
- ROHS3 Compliant
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Length - Post :
- 0.138 3.50mm
- Contact Type :
- Male Pin
- Datasheets
- 0039299184
0039299184 Documents
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA66), Nylon 6/6 18-Position Board to Cable/Wire 0.504 12.80mm Height
0039299184 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the Mini-Fit Jr 5566 Series of products.It is possible for the device to be used for the application General Purpose, Industrial, Telecommunications.A number of features make it more powerful because of its Board Lock feature.
0039299184 Features
Mini-Fit Jr 5566 series
0039299184 Applications
There are a lot of Molex
0039299184 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
