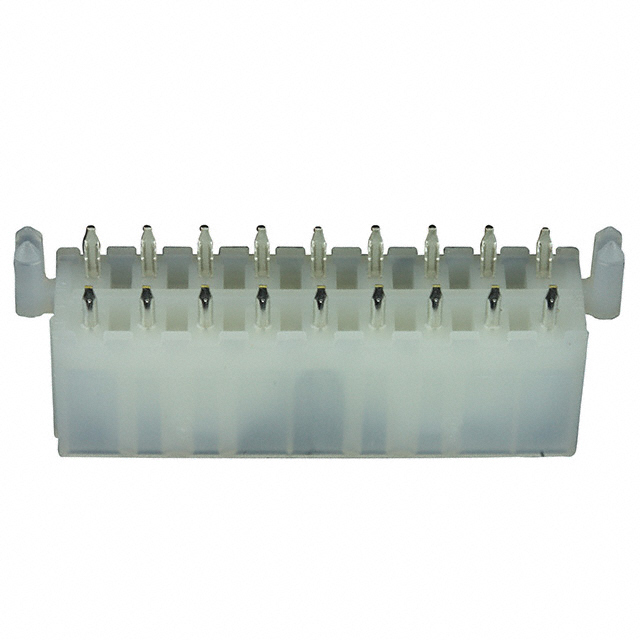

0039299183
Or copy the link below:
- Mfr.Part #
- 0039299183
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 18POS 4.2MM
- Stock
- 733
- In Stock ：
- 733
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Packaging :
- Tray
- Material Flammability Rating :
- UL94 V-2
- Fastening Type :
- Locking Ramp
- Contact Finish - Mating :
- Tin
- Insulation Color :
- Natural
- Contact Shape :
- Square
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Applications :
- General Purpose, Industrial, Telecommunications
- Number of Positions :
- 18
- Feature :
- Board Lock
- Factory Lead Time :
- 6 Weeks
- Termination :
- Solder
- Contact Type :
- Male Pin
- Style :
- Board to Cable/Wire
- Pitch - Mating :
- 0.165 4.20mm
- Connector Type :
- Header
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Contact Finish Thickness - Mating :
- 35.4μin 0.90μm
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Through Hole
- Contact Finish Thickness - Post :
- 35.0μin 0.90μm
- Insulation Height :
- 0.504 12.80mm
- Series :
- Mini-Fit Jr 5566
- Contact Length - Post :
- 0.138 3.50mm
- Number of Positions Loaded :
- All
- Contact Material :
- Brass
- Number of Rows :
- 2
- Shrouding :
- Shrouded - 4 Wall
- Datasheets
- 0039299183
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 18-Position Board to Cable/Wire 0.504 12.80mm Height
0039299183 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the Mini-Fit Jr 5566 Series of products.It is possible for the device to be used for the application General Purpose, Industrial, Telecommunications.A number of features make it more powerful because of its Board Lock feature.
0039299183 Features
Mini-Fit Jr 5566 series
0039299183 Applications
There are a lot of Molex
0039299183 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
