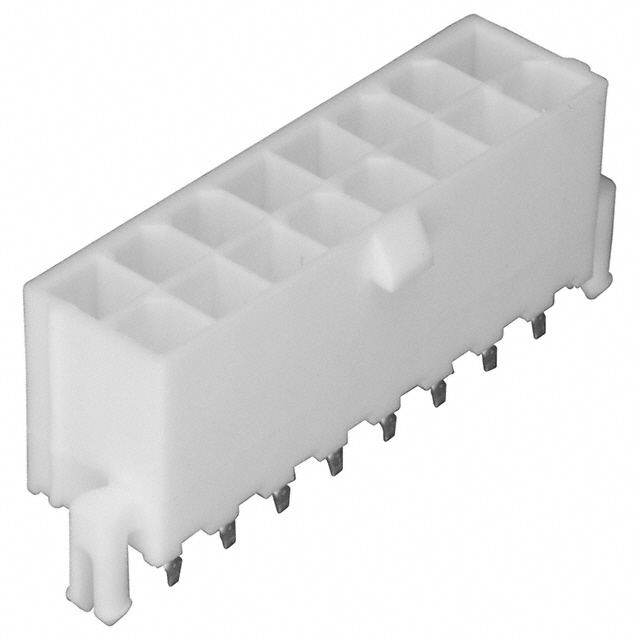

0039299169
Or copy the link below:
- Mfr.Part #
- 0039299169
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 16POS 4.2MM
- Stock
- 1,574
- In Stock ：
- 1,574
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Insulation Height :
- 0.504 12.80mm
- Number of Rows :
- 2
- Feature :
- Board Lock
- Contact Shape :
- Square
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Contact Finish - Mating :
- Gold
- Pbfree Code :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Header
- Applications :
- General Purpose, Industrial, Telecommunications
- Shrouding :
- Shrouded - 4 Wall
- Termination :
- Solder
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Factory Lead Time :
- 5 Weeks
- Contact Length - Post :
- 0.138 3.50mm
- Contact Material :
- Brass
- RoHS Status :
- ROHS3 Compliant
- Insulation Color :
- Natural
- Packaging :
- Tray
- Mounting Type :
- Through Hole
- Pitch - Mating :
- 0.165 4.20mm
- Series :
- Mini-Fit Jr 5566
- Number of Positions Loaded :
- All
- Style :
- Board to Cable/Wire
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Number of Positions :
- 16
- Material Flammability Rating :
- UL94 V-0
- Contact Type :
- Male Pin
- Contact Finish - Post :
- Tin
- Fastening Type :
- Locking Ramp
- Datasheets
- 0039299169
0039299169 Documents
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA66), Nylon 6/6 16-Position Board to Cable/Wire 0.504 12.80mm Height
0039299169 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the Mini-Fit Jr 5566 Series of products.It is possible for the device to be used for the application General Purpose, Industrial, Telecommunications.A number of features make it more powerful because of its Board Lock feature.
0039299169 Features
Mini-Fit Jr 5566 series
0039299169 Applications
There are a lot of Molex
0039299169 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
