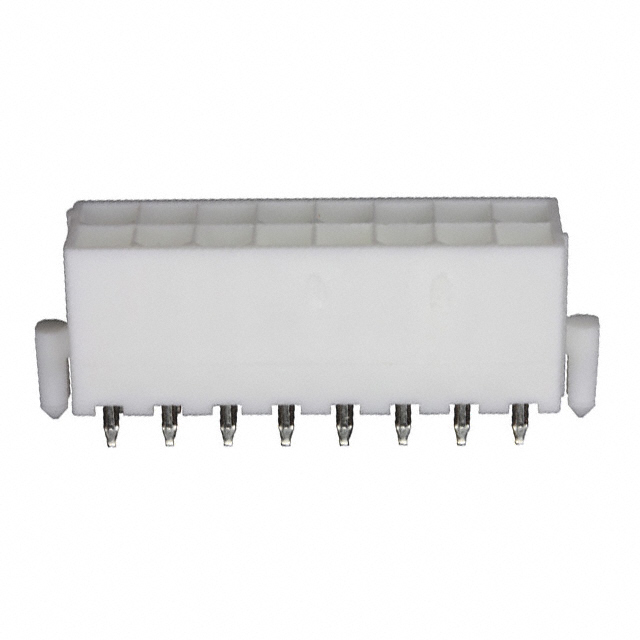

0039299167
Or copy the link below:
- Mfr.Part #
- 0039299167
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 16POS 4.2MM
- Stock
- 3,039
- In Stock ：
- 3,039
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Post :
- 35.0μin 0.90μm
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Factory Lead Time :
- 6 Weeks
- Contact Finish - Mating :
- Tin
- Contact Type :
- Male Pin
- ECCN Code :
- EAR99
- Insulation Height :
- 0.504 12.80mm
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Finish Thickness - Mating :
- 35.4μin 0.90μm
- Feature :
- Board Lock
- Packaging :
- Tray
- Number of Rows :
- 2
- Connector Type :
- Header
- Number of Positions :
- 16
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Style :
- Board to Cable/Wire
- Pitch - Mating :
- 0.165 4.20mm
- Applications :
- General Purpose, Industrial, Telecommunications
- Number of Positions Loaded :
- All
- Insulation Color :
- Natural
- Termination :
- Solder
- RoHS Status :
- ROHS3 Compliant
- HTS Code :
- 8536.69.40.30
- Fastening Type :
- Locking Ramp
- Contact Shape :
- Square
- Mounting Type :
- Through Hole
- Shrouding :
- Shrouded - 4 Wall
- Contact Length - Post :
- 0.138 3.50mm
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- Brass
- Series :
- Mini-Fit Jr 5566
- Datasheets
- 0039299167
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 16-Position Board to Cable/Wire 0.504 12.80mm Height
0039299167 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Tray case is used to package the product.A product of the Mini-Fit Jr 5566 Series, it belongs to the range of products of that series.This device may be used for the purpose of General Purpose, Industrial, Telecommunications.A number of features make the Board Lock feature more powerful.
0039299167 Features
Mini-Fit Jr 5566 series
0039299167 Applications
There are a lot of Molex
0039299167 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
