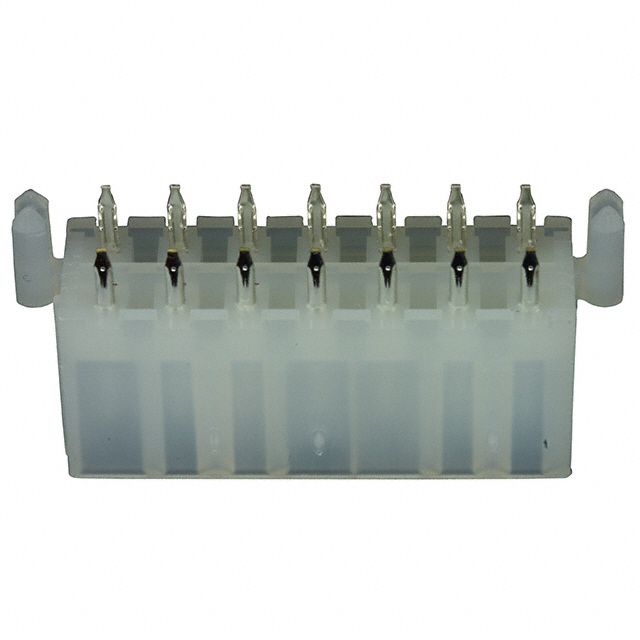

0039299143
Or copy the link below:
- Mfr.Part #
- 0039299143
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 14POS 4.2MM
- Stock
- 1,722
- In Stock ：
- 1,722
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Number of Positions Loaded :
- All
- Fastening Type :
- Locking Ramp
- Contact Finish Thickness - Post :
- 35.0μin 0.90μm
- Contact Length - Post :
- 0.138 3.50mm
- Style :
- Board to Cable/Wire
- Termination :
- Solder
- Pitch - Mating :
- 0.165 4.20mm
- Series :
- Mini-Fit Jr 5566
- Contact Type :
- Male Pin
- Contact Finish - Mating :
- Tin
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Shrouding :
- Shrouded - 4 Wall
- Feature :
- Board Lock
- Contact Shape :
- Square
- Insulation Height :
- 0.504 12.80mm
- Factory Lead Time :
- 5 Weeks
- Number of Positions :
- 14
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish Thickness - Mating :
- 35.4μin 0.90μm
- Applications :
- General Purpose, Industrial, Telecommunications
- Material Flammability Rating :
- UL94 V-2
- Connector Type :
- Header
- Contact Material :
- Brass
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Through Hole
- Insulation Color :
- Natural
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Number of Rows :
- 2
- Packaging :
- Tray
- Datasheets
- 0039299143
0039299143 Documents
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 14-Position Board to Cable/Wire 0.504 12.80mm Height
0039299143 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number Mini-Fit Jr 5566 belongs to the Mini-Fit Jr 5566 Series.In addition to General Purpose, Industrial, Telecommunications, there are other possible applications for the device.In many ways, it is more powerful due to its Board Lock feature.
0039299143 Features
Mini-Fit Jr 5566 series
0039299143 Applications
There are a lot of Molex
0039299143 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
