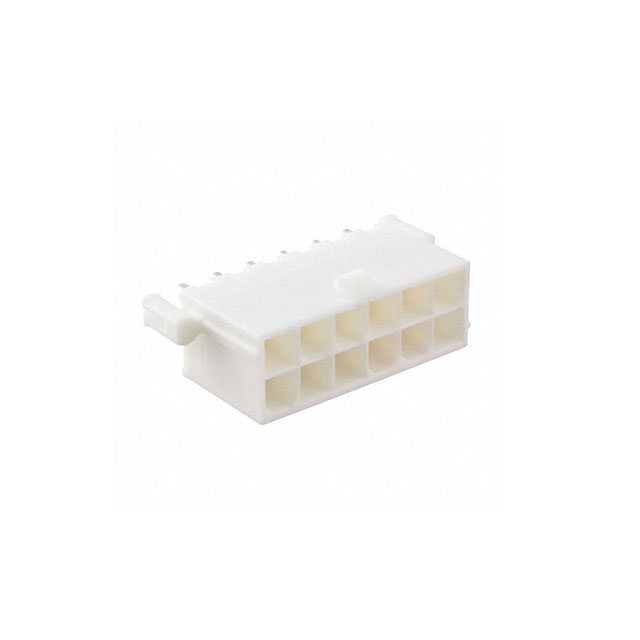

0039299129
Or copy the link below:
- Mfr.Part #
- 0039299129
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 12POS 4.2MM
- Stock
- 1,778
- In Stock ：
- 1,778
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Applications :
- General Purpose, Industrial, Telecommunications
- Contact Material :
- Brass
- Contact Finish - Mating :
- Gold
- Series :
- Mini-Fit Jr 5566
- Factory Lead Time :
- 5 Weeks
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Header
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Shape :
- Square
- Insulation Color :
- Natural
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Number of Rows :
- 2
- Packaging :
- Tray
- Shrouding :
- Shrouded - 4 Wall
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Fastening Type :
- Locking Ramp
- Number of Positions :
- 12
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- RoHS Status :
- ROHS3 Compliant
- Number of Positions Loaded :
- All
- Mounting Type :
- Through Hole
- Contact Finish - Post :
- Tin
- Insulation Height :
- 0.504 12.80mm
- Style :
- Board to Cable/Wire
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Feature :
- Board Lock
- Contact Type :
- Male Pin
- Contact Length - Post :
- 0.138 3.50mm
- Pitch - Mating :
- 0.165 4.20mm
- Datasheets
- 0039299129
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA66), Nylon 6/6 12-Position Board to Cable/Wire 0.504 12.80mm Height
0039299129 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the Mini-Fit Jr 5566 Series, it can be found in this category.A possible application of the device would be General Purpose, Industrial, Telecommunications.With its Board Lock feature, it is more powerful in many ways.
0039299129 Features
Mini-Fit Jr 5566 series
0039299129 Applications
There are a lot of Molex
0039299129 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
