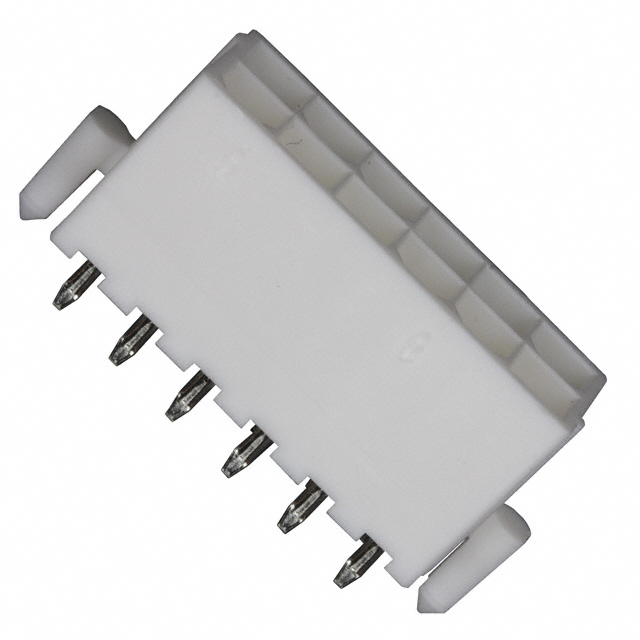

0039299126
Or copy the link below:
- Mfr.Part #
- 0039299126
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 12POS 4.2MM
- Stock
- 15,384
- In Stock ：
- 15,384
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Post :
- 35.0μin 0.90μm
- Contact Finish - Mating :
- Tin
- Termination :
- Solder
- Contact Length - Post :
- 0.138 3.50mm
- Number of Rows :
- 2
- Insulation Color :
- Natural
- Number of Positions Loaded :
- All
- Packaging :
- Tray
- Series :
- Mini-Fit Jr 5566
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Insulation Height :
- 0.504 12.80mm
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Material :
- Brass
- Fastening Type :
- Locking Ramp
- Factory Lead Time :
- 6 Weeks
- RoHS Status :
- ROHS3 Compliant
- Contact Shape :
- Square
- Contact Type :
- Male Pin
- Pitch - Mating :
- 0.165 4.20mm
- Contact Finish Thickness - Mating :
- 35.4μin 0.90μm
- Shrouding :
- Shrouded - 4 Wall
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Applications :
- General Purpose, Industrial, Telecommunications
- Feature :
- Board Lock
- Number of Positions :
- 12
- Connector Type :
- Header
- Style :
- Board to Cable/Wire
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 0039299126
0039299126 Documents
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 12-Position Board to Cable/Wire 0.504 12.80mm Height
0039299126 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number Mini-Fit Jr 5566 belongs to the Mini-Fit Jr 5566 Series.In addition to General Purpose, Industrial, Telecommunications, there are other possible applications for the device.In many ways, it is more powerful due to its Board Lock feature.
0039299126 Features
Mini-Fit Jr 5566 series
0039299126 Applications
There are a lot of Molex
0039299126 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
