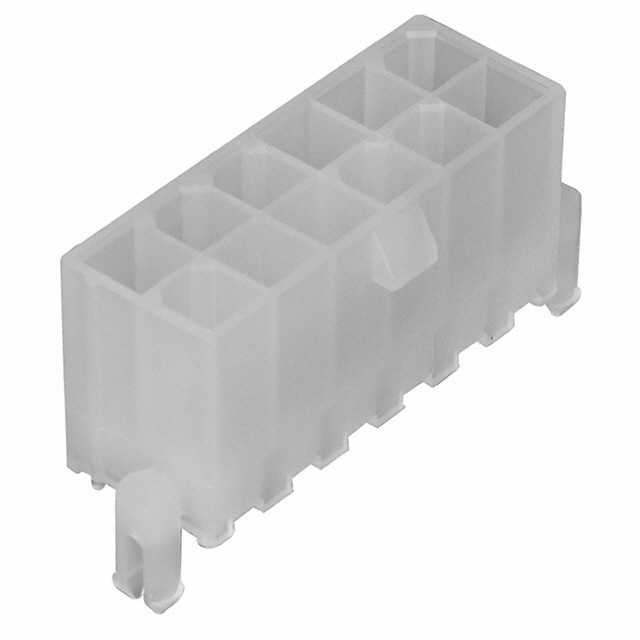

0039299123

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Insertion Force-Max :

14.6784 N

Mounting Type :

Through Hole

Contact Resistance :

10MOhm

Style :

Board to Cable/Wire

Row Spacing - Mating :

0.165 (4.20mm)

Packaging :

Tray

Series :

Mini-Fit Jr 5566

Contact Material :

Brass

Feature :

Board Lock

Insulation Height :

0.504 12.80mm

Connector Type :

Header

Contact Finish Thickness - Post :

35.0μin 0.90μm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Applications :

General Purpose, Industrial, Telecommunications

Fastening Type :

Locking Ramp

Number of Positions Loaded :

All

Insulation Resistance :

1000000000Ohm

Termination :

Solder

Number of Rows :

2

Factory Lead Time :

5 Weeks

RoHS Status :

ROHS3 Compliant

Withdrawl Force-Min :

.5004 N

Durability :

30 Cycles

Contact Type :

Male Pin

Pitch - Mating :

0.165 4.20mm

Board Mounting Option :

PEG

Insulation Material :

Polyamide (PA66), Nylon 6/6

Reference Standard :

UL, CSA

Mixed Contacts :

yes

Reliability :

COMMERCIAL

Contact Finish - Mating :

Tin

Operating Temperature (Max) :

105°C

Shrouding :

Shrouded - 4 Wall

Number of Positions :

12

HTS Code :

8536.69.40.40

Contact Shape :

Square

Operating Temperature (Min) :

-40°C

Material Flammability Rating :

UL94 V-2

Number of Conductors :

ONE

Plating Thickness :

35μin

ECCN Code :

EAR99

Contact Length - Post :

0.138 3.50mm

Insulation Color :

Natural

Contact Finish Thickness - Mating :

35.4μin 0.90μm
