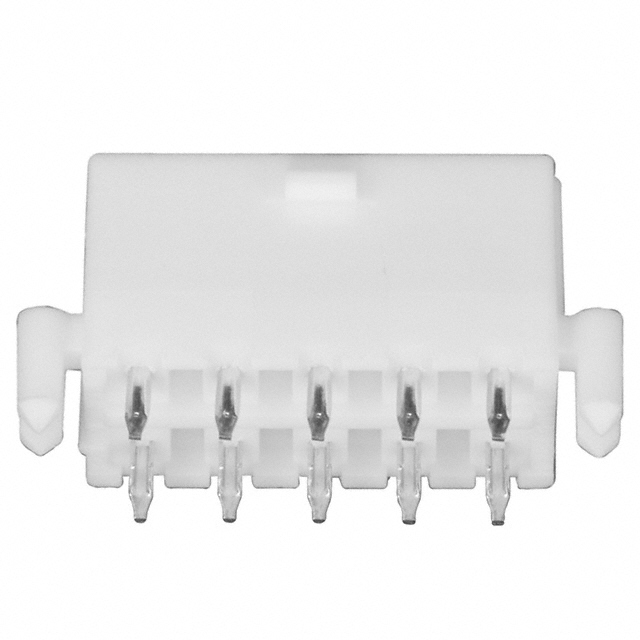

0039299107
Or copy the link below:
- Mfr.Part #
- 0039299107
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 10POS 4.2MM
- Stock
- 5,158
- In Stock ：
- 5,158
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Post :
- 35.0μin 0.90μm
- Packaging :
- Tray
- Contact Shape :
- Square
- Fastening Type :
- Locking Ramp
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Number of Positions Loaded :
- All
- Contact Finish Thickness - Mating :
- 35.4μin 0.90μm
- Shrouding :
- Shrouded - 4 Wall
- Insulation Height :
- 0.504 12.80mm
- Feature :
- Board Lock
- Contact Finish - Mating :
- Tin
- Insulation Color :
- Natural
- Number of Positions :
- 10
- Contact Length - Post :
- 0.138 3.50mm
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Applications :
- General Purpose, Industrial, Telecommunications
- Factory Lead Time :
- 6 Weeks
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- Brass
- Series :
- Mini-Fit Jr 5566
- Connector Type :
- Header
- Style :
- Board to Cable/Wire
- Number of Rows :
- 2
- Mounting Type :
- Through Hole
- Termination :
- Solder
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Pitch - Mating :
- 0.165 4.20mm
- Contact Type :
- Male Pin
- Datasheets
- 0039299107
0039299107 Documents
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 10-Position Board to Cable/Wire 0.504 12.80mm Height
0039299107 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the Mini-Fit Jr 5566 Series of products.It is possible for the device to be used for the application General Purpose, Industrial, Telecommunications.A number of features make it more powerful because of its Board Lock feature.
0039299107 Features
Mini-Fit Jr 5566 series
0039299107 Applications
There are a lot of Molex
0039299107 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
