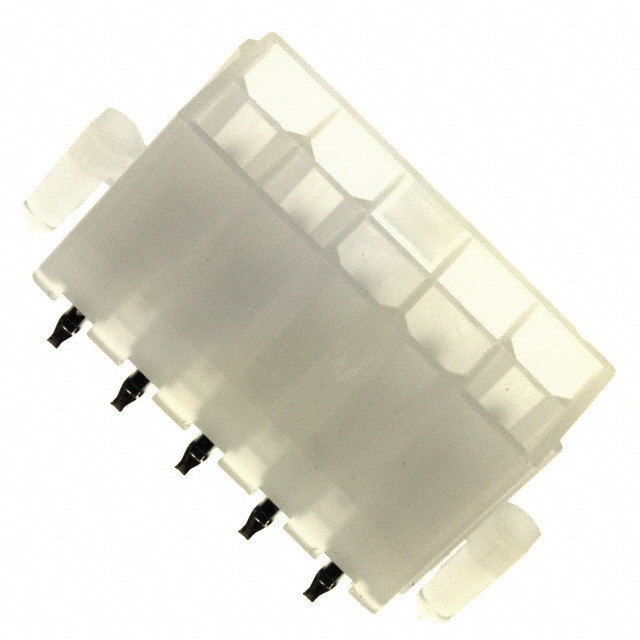

0039299102
Or copy the link below:
- Mfr.Part #
- 0039299102
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 10POS 4.2MM
- Stock
- 4,224
- In Stock ：
- 4,224
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Packaging :
- Tray
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Finish - Mating :
- Tin
- Insulation Color :
- Natural
- Termination :
- Solder
- Number of Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Shape :
- Square
- Pitch - Mating :
- 0.165 4.20mm
- Insulation Height :
- 0.504 12.80mm
- Contact Material :
- Brass
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Contact Type :
- Male Pin
- Fastening Type :
- Locking Ramp
- Factory Lead Time :
- 5 Weeks
- RoHS Status :
- ROHS3 Compliant
- Contact Finish Thickness - Mating :
- 35.4μin 0.90μm
- Contact Finish Thickness - Post :
- 35.0μin 0.90μm
- Number of Positions :
- 10
- Style :
- Board to Cable/Wire
- Shrouding :
- Shrouded - 4 Wall
- Mounting Type :
- Through Hole
- Material Flammability Rating :
- UL94 V-2
- Contact Length - Post :
- 0.138 3.50mm
- Feature :
- Board Lock
- Number of Positions Loaded :
- All
- Applications :
- General Purpose, Industrial, Telecommunications
- Series :
- Mini-Fit Jr 5566
- Connector Type :
- Header
- Datasheets
- 0039299102
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 10-Position Board to Cable/Wire 0.504 12.80mm Height
0039299102 Overview
Header packaging is included.This device has a mounting type of Through Hole.We package the product with a Tray case.The product is part of the Mini-Fit Jr 5566 Series.You can use it for General Purpose, Industrial, Telecommunications.This feature makes it more powerful in a number of ways due to its Board Lock feature.
0039299102 Features
Mini-Fit Jr 5566 series
0039299102 Applications
There are a lot of Molex
0039299102 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
