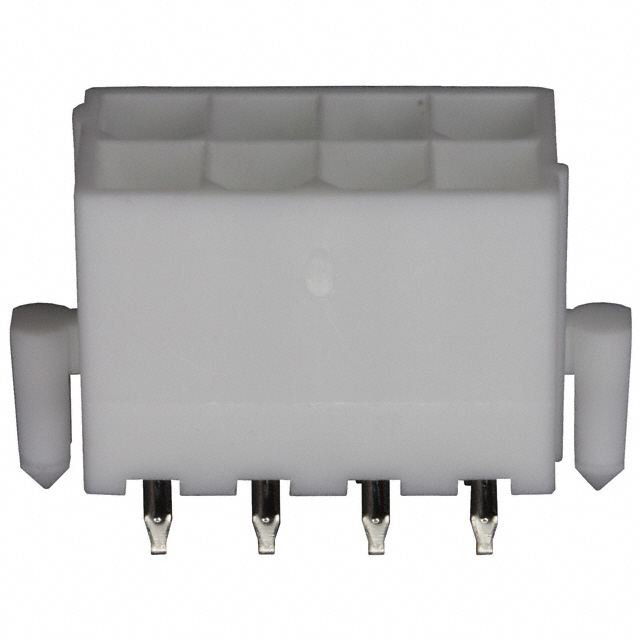

0039299086
Or copy the link below:
- Mfr.Part #
- 0039299086
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 4.2MM
- Stock
- 4,921
- In Stock ：
- 4,921
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Factory Lead Time :
- 10 Weeks
- Series :
- Mini-Fit Jr 5566
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Color :
- Natural
- Insulation Height :
- 0.504 12.80mm
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Contact Finish - Mating :
- Tin
- Fastening Type :
- Locking Ramp
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- Brass
- Contact Finish Thickness - Post :
- 35.0μin 0.90μm
- Number of Rows :
- 2
- Contact Shape :
- Square
- Applications :
- General Purpose, Industrial, Telecommunications
- Pitch - Mating :
- 0.165 4.20mm
- Number of Positions Loaded :
- All
- Contact Type :
- Male Pin
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Feature :
- Board Lock
- Style :
- Board to Cable/Wire
- Packaging :
- Tray
- Termination :
- Solder
- Connector Type :
- Header
- Number of Positions :
- 8
- Shrouding :
- Shrouded - 4 Wall
- RoHS Status :
- ROHS3 Compliant
- Contact Finish Thickness - Mating :
- 35.4μin 0.90μm
- Contact Length - Post :
- 0.138 3.50mm
- Mounting Type :
- Through Hole
- Datasheets
- 0039299086
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 8-Position Board to Cable/Wire 0.504 12.80mm Height
0039299086 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number Mini-Fit Jr 5566 belongs to the Mini-Fit Jr 5566 Series.In addition to General Purpose, Industrial, Telecommunications, there are other possible applications for the device.In many ways, it is more powerful due to its Board Lock feature.
0039299086 Features
Mini-Fit Jr 5566 series
0039299086 Applications
There are a lot of Molex
0039299086 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
