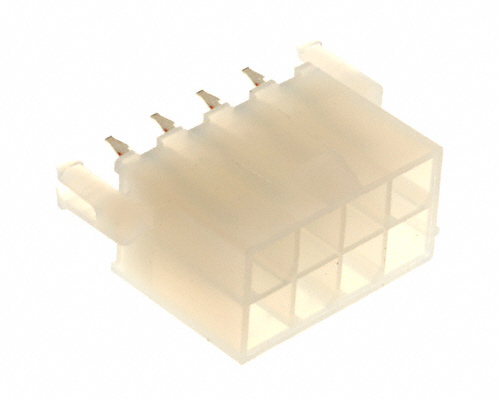

0039299082
Or copy the link below:
- Mfr.Part #
- 0039299082
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 4.2MM
- Stock
- 2,431
- In Stock ：
- 2,431
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Packaging :
- Tray
- Row Spacing - Mating :
- 0.165 (4.20mm)
- MIL Conformance :
- No
- Applications :
- General Purpose, Industrial, Telecommunications
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shrouding :
- Shrouded - 4 Wall
- Style :
- Board to Cable/Wire
- IEC Conformance :
- No
- Contact Finish - Mating :
- Tin
- Mounting Type :
- Through Hole
- Mixed Contacts :
- No
- Series :
- Mini-Fit Jr 5566
- Fastening Type :
- Locking Ramp
- Contact Length - Post :
- 0.138 3.50mm
- Additional Feature :
- POLARIZATION, SHROUDED
- RoHS Status :
- ROHS3 Compliant
- DIN Conformance :
- No
- Feature :
- Board Lock
- Insulation Color :
- Natural
- Number of Positions Loaded :
- All
- Empty Shell :
- No
- Contact Finish Thickness - Mating :
- 35.4μin 0.90μm
- JESD-609 Code :
- e3
- Contact Type :
- Male Pin
- Insulation Height :
- 0.504 12.80mm
- Pbfree Code :
- yes
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Material :
- Brass
- Pitch - Mating :
- 0.165 4.20mm
- Contact Finish Thickness - Post :
- 35.0μin 0.90μm
- Number of Rows :
- 2
- ECCN Code :
- EAR99
- Contact Shape :
- Square
- Filter Feature :
- No
- Number of Positions :
- 8
- Connector Type :
- Header
- Factory Lead Time :
- 6 Weeks
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-2
- Datasheets
- 0039299082
0039299082 Documents
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 8-Position Board to Cable/Wire 0.504 12.80mm Height
0039299082 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the Mini-Fit Jr 5566 Series.Furthermore, there are other features such as POLARIZATION, SHROUDED, to name a few.There is the possibility of using the device for General Purpose, Industrial, Telecommunications.In many ways, Board Lock makes it more powerful.
0039299082 Features
Mini-Fit Jr 5566 series
0039299082 Applications
There are a lot of Molex
0039299082 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
