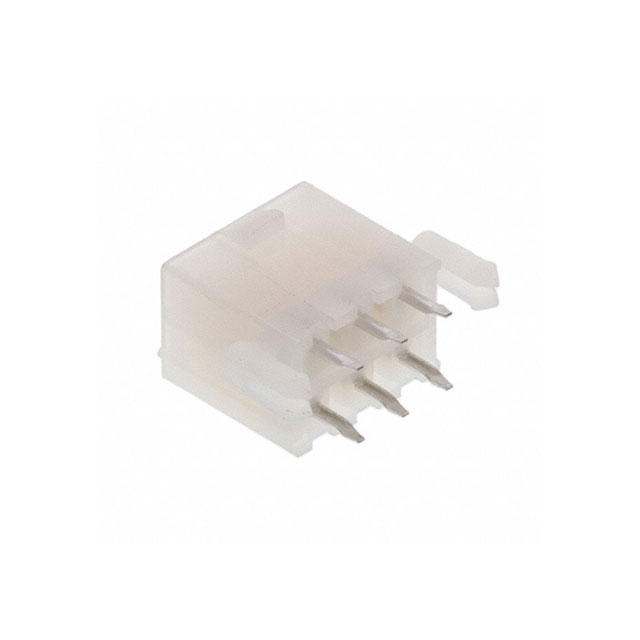

0039299065
Or copy the link below:
- Mfr.Part #
- 0039299065
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 6POS 4.2MM
- Stock
- 952
- In Stock ：
- 952
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Voltage - Rated :
- 600V
- Packaging :
- Tray
- Series :
- Mini-Fit Jr 5566
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Connector Type :
- Header
- Housing Material :
- Nylon
- Fastening Type :
- Locking Ramp
- Insulation Height :
- 0.504 12.80mm
- Style :
- Board to Cable/Wire
- Number of Circuits :
- 6
- Voltage - Rated DC :
- 600V
- Number of Positions :
- 6
- Number of Positions Loaded :
- All
- Number of Contacts :
- 6
- Contact Type :
- Male Pin
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Insulation Resistance :
- 1GOhm
- Current Rating :
- 8A
- Contact Shape :
- Square
- Number of Rows :
- 2
- REACH SVHC :
- Unknown
- Min Operating Temperature :
- -40°C
- Shrouding :
- Shrouded - 4 Wall
- Termination :
- Solder
- Flammability Rating :
- UL94 V-0
- Height :
- 13.3mm
- Max Voltage Rating (DC) :
- 600.6kV
- Mount :
- Through Hole
- Contact Finish - Mating :
- Gold
- Lead Pitch :
- 4.2mm
- Contact Gender :
- Male
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Factory Lead Time :
- 5 Weeks
- Mounting Type :
- Through Hole
- Applications :
- General Purpose, Industrial, Telecommunications
- Color :
- Natural
- Pitch - Mating :
- 0.165 4.20mm
- Orientation :
- Vertical
- Contact Material :
- Brass
- RoHS Status :
- ROHS3 Compliant
- Glow Wire Compliant :
- Non-Compliant
- Max Operating Temperature :
- 105°C
- Insulation Color :
- Natural
- Contact Length - Post :
- 0.138 3.50mm
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Finish - Post :
- Tin
- Pitch :
- 4.2mm
- Contact Plating :
- Gold
- Halogen Free :
- Low Halogen
- Gender :
- Male
- Feature :
- Board Lock
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-2
- Datasheets
- 0039299065
0039299065 Documents
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA66), Nylon 6/6 6-Position Board to Cable/Wire 0.504 12.80mm Height
0039299065 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the Mini-Fit Jr 5566 Series.Use it below 105°C.A minimum temperature of -40°C must be maintained for the operation of this device.There is the possibility of using the device for General Purpose, Industrial, Telecommunications.In many ways, Board Lock makes it more powerful.By Through Hole, the part is mounted.It consists of 6 circuits.
0039299065 Features
Mini-Fit Jr 5566 series
0039299065 Applications
There are a lot of Molex
0039299065 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
