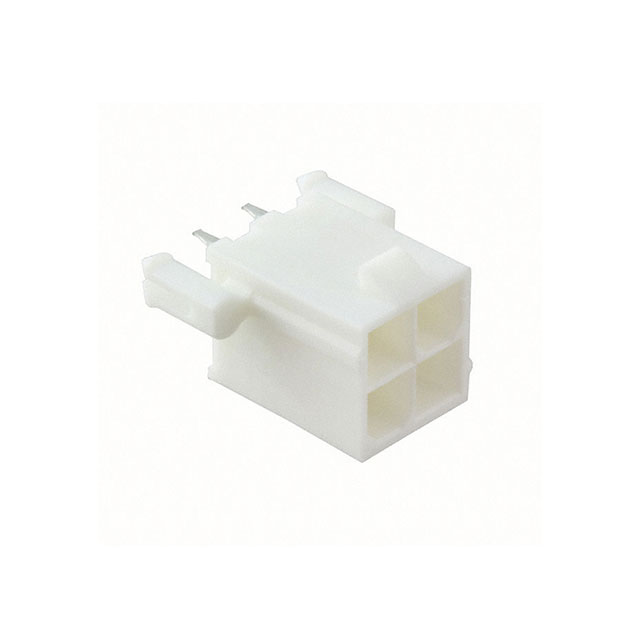

0039299049
Or copy the link below:
- Mfr.Part #
- 0039299049
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 4.2MM
- Stock
- 1,750
- In Stock ：
- 1,750
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Post :
- Tin
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Number of Rows :
- 2
- Factory Lead Time :
- 6 Weeks
- Termination :
- Solder
- Number of Positions Loaded :
- All
- Style :
- Board to Cable/Wire
- Insulation Height :
- 0.504 12.80mm
- Fastening Type :
- Locking Ramp
- RoHS Status :
- ROHS3 Compliant
- Material Flammability Rating :
- UL94 V-0
- Contact Type :
- Male Pin
- Pbfree Code :
- yes
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Shape :
- Square
- Contact Length - Post :
- 0.138 3.50mm
- Number of Positions :
- 4
- Mounting Type :
- Through Hole
- Insulation Color :
- Natural
- Contact Material :
- Brass
- Packaging :
- Tray
- Pitch - Mating :
- 0.165 4.20mm
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Applications :
- General Purpose, Industrial, Telecommunications
- Series :
- Mini-Fit Jr 5566
- Contact Finish - Mating :
- Gold
- Feature :
- Board Lock
- Connector Type :
- Header
- Datasheets
- 0039299049
0039299049 Documents
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Gold Polyamide (PA66), Nylon 6/6 4-Position Board to Cable/Wire 0.504 12.80mm Height
0039299049 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Tray case is used to package the product.A product of the Mini-Fit Jr 5566 Series, it belongs to the range of products of that series.This device may be used for the purpose of General Purpose, Industrial, Telecommunications.A number of features make the Board Lock feature more powerful.
0039299049 Features
Mini-Fit Jr 5566 series
0039299049 Applications
There are a lot of Molex
0039299049 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
