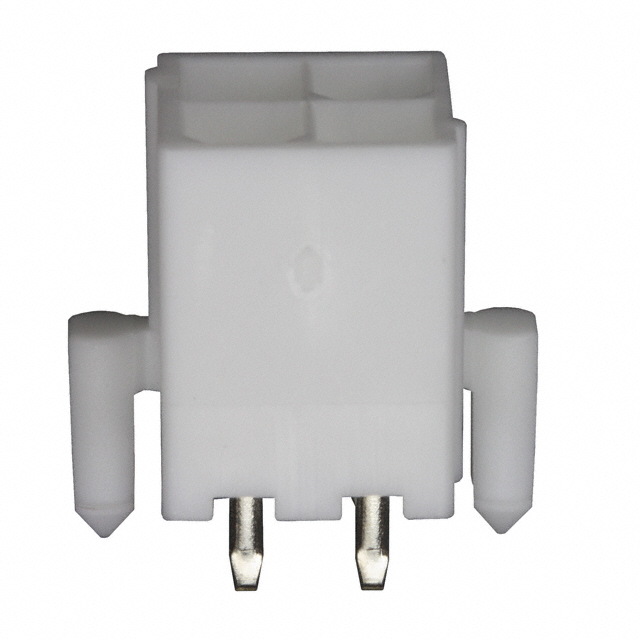

0039299047
Or copy the link below:
- Mfr.Part #
- 0039299047
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 4.2MM
- Stock
- 3,247
- In Stock ：
- 3,247
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish Thickness - Post :
- 35.0μin 0.90μm
- Contact Finish Thickness - Mating :
- 35.4μin 0.90μm
- Series :
- Mini-Fit Jr 5566
- Pitch - Mating :
- 0.165 4.20mm
- Number of Rows :
- 2
- Material Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Insulation Height :
- 0.504 12.80mm
- Applications :
- General Purpose, Industrial, Telecommunications
- Factory Lead Time :
- 5 Weeks
- Packaging :
- Tray
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Fastening Type :
- Locking Ramp
- Insulation Color :
- Natural
- Number of Positions :
- 4
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Shrouding :
- Shrouded - 4 Wall
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Shape :
- Square
- Contact Finish - Mating :
- Tin
- Contact Type :
- Male Pin
- Feature :
- Board Lock
- Contact Length - Post :
- 0.138 3.50mm
- Contact Material :
- Brass
- RoHS Status :
- ROHS3 Compliant
- Connector Type :
- Header
- Termination :
- Solder
- Mounting Type :
- Through Hole
- Style :
- Board to Cable/Wire
- Datasheets
- 0039299047
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 4-Position Board to Cable/Wire 0.504 12.80mm Height
0039299047 Overview
Packaging for this item is Header.There is a mounting type of Through Hole for this device.It is necessary to use a Tray case for packaging the product.This product is part of the Mini-Fit Jr 5566 Series.A possible application for the device is General Purpose, Industrial, Telecommunications.In many ways, its Board Lock feature makes it more powerful.
0039299047 Features
Mini-Fit Jr 5566 series
0039299047 Applications
There are a lot of Molex
0039299047 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
