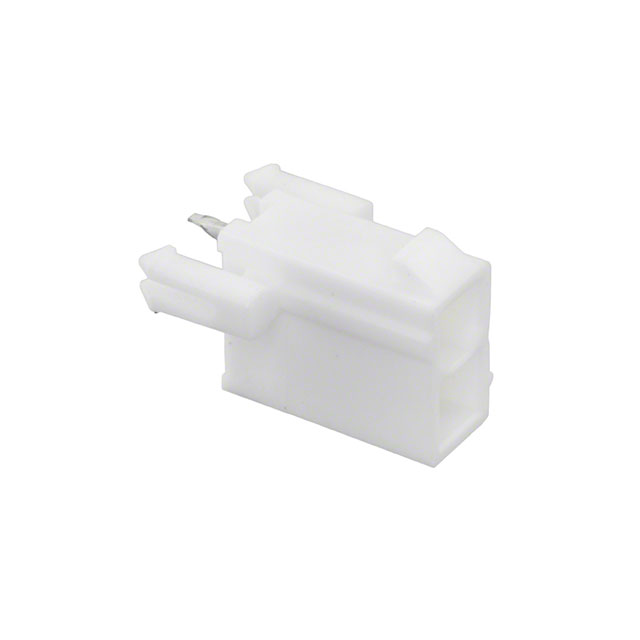

0039299029
Or copy the link below:
- Mfr.Part #
- 0039299029
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS
- Stock
- 38,172
- In Stock ：
- 38,172
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Feature :
- Board Lock
- Contact Shape :
- Square
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 6 Weeks
- Style :
- Board to Cable/Wire
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions Loaded :
- All
- Applications :
- General Purpose, Industrial, Telecommunications
- Contact Material :
- Brass
- Contact Type :
- Male Pin
- Contact Finish - Post :
- Tin
- Connector Type :
- Header
- Insulation Height :
- 0.504 12.80mm
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Termination :
- Solder
- Contact Finish - Mating :
- Gold
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Series :
- Mini-Fit Jr 5566
- Fastening Type :
- Locking Ramp
- Packaging :
- Tray
- Insulation Color :
- Natural
- Contact Length - Post :
- 0.138 3.50mm
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Shrouding :
- Shrouded - 4 Wall
- Mounting Type :
- Through Hole
- Datasheets
- 0039299029
0039299029 Documents
Mini-Fit Jr 5566 Series Header Solder Brass Tray Through Hole Gold Polyamide (PA66), Nylon 6/6 2-Position Board to Cable/Wire 0.504 12.80mm Height
0039299029 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the Mini-Fit Jr 5566 Series, it can be found in this category.A possible application of the device would be General Purpose, Industrial, Telecommunications.With its Board Lock feature, it is more powerful in many ways.
0039299029 Features
Mini-Fit Jr 5566 series
0039299029 Applications
There are a lot of Molex
0039299029 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
