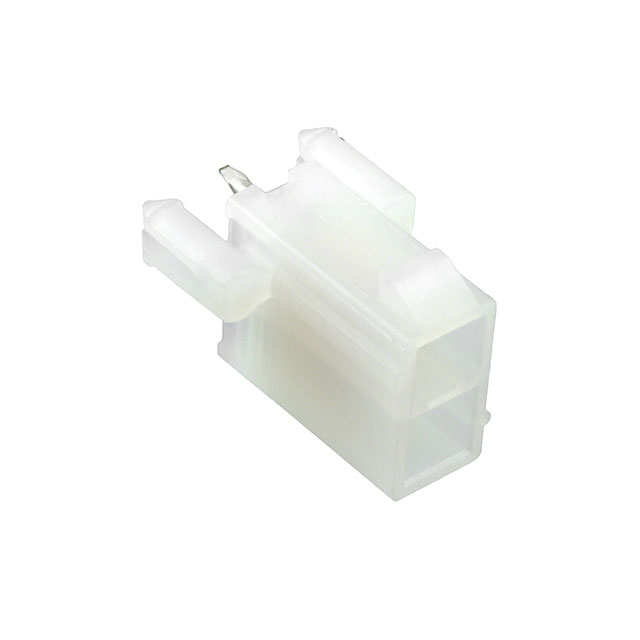

0039299025
Or copy the link below:
- Mfr.Part #
- 0039299025
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS
- Stock
- 14,140
- In Stock ：
- 14,140
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Number of Contacts :
- 2
- Current Rating :
- 9A
- Series :
- Mini-Fit Jr 5566
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Insulation Color :
- Natural
- Contact Type :
- Male Pin
- Number of Positions Loaded :
- All
- Contact Length - Post :
- 0.138 3.50mm
- Contact Finish - Post :
- Tin
- Factory Lead Time :
- 5 Weeks
- Contact Finish - Mating :
- Gold
- Min Operating Temperature :
- -40°C
- Pitch :
- 4.2mm
- Mounting Type :
- Through Hole
- Applications :
- General Purpose, Industrial, Telecommunications
- Fastening Type :
- Locking Ramp
- Feature :
- Board Lock
- Mount :
- Through Hole
- Glow Wire Compliant :
- Non-Compliant
- Flammability Rating :
- UL94 V-0
- Style :
- Board to Cable/Wire
- Lead Pitch :
- 4.2mm
- REACH SVHC :
- Unknown
- Housing Material :
- Nylon
- Packaging :
- Tray
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated DC :
- 600V
- Connector Type :
- Header
- Contact Shape :
- Square
- Pbfree Code :
- yes
- Contact Material :
- Brass
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Shrouding :
- Shrouded - 4 Wall
- Max Voltage Rating (DC) :
- 600.6kV
- Contact Gender :
- Male
- Insulation Height :
- 0.504 12.80mm
- Voltage - Rated :
- 600V
- Max Operating Temperature :
- 105°C
- Orientation :
- Vertical
- Height :
- 13.3mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Halogen Free :
- Low Halogen
- Contact Resistance :
- 10MOhm
- Insulation Resistance :
- 1GOhm
- Material Flammability Rating :
- UL94 V-2
- Termination :
- Solder
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Datasheets
- 0039299025
Mini-Fit Jr 5566 Series Header Solder Brass Tray Through Hole Gold Polyamide (PA66), Nylon 6/6 Board to Cable/Wire 0.504 12.80mm Height
0039299025 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.It belongs to the Mini-Fit Jr 5566 Series of products.It's best to use it when the temperature is below 105°C.This device must operate at a minimum temperature of -40°C.General Purpose, Industrial, Telecommunications is a possible application for the device.Its Board Lock feature renders it more powerful in many ways.The part is mounted by Through Hole.
0039299025 Features
Mini-Fit Jr 5566 series
0039299025 Applications
There are a lot of Molex
0039299025 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
