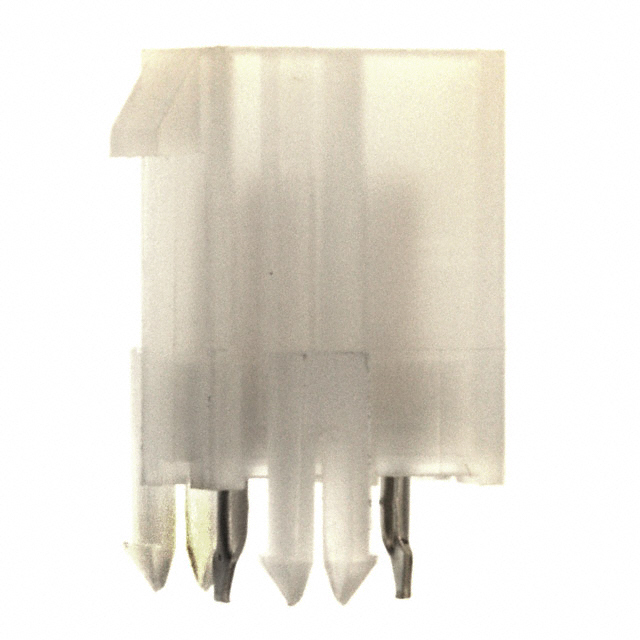

0039299024
Or copy the link below:
- Mfr.Part #
- 0039299024
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS
- Stock
- 41,333
- In Stock ：
- 41,333
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish - Mating :
- Gold
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Applications :
- General Purpose, Industrial, Telecommunications
- Fastening Type :
- Locking Ramp
- Packaging :
- Tray
- RoHS Status :
- ROHS3 Compliant
- Number of Positions :
- 2
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Termination :
- Solder
- Contact Type :
- Male Pin
- Contact Material :
- Brass
- Number of Positions Loaded :
- All
- Series :
- Mini-Fit Jr 5566
- Insulation Color :
- Natural
- Insulation Height :
- 0.504 12.80mm
- Contact Shape :
- Square
- Style :
- Board to Cable/Wire
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Material Flammability Rating :
- UL94 V-2
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Mounting Type :
- Through Hole
- Contact Length - Post :
- 0.138 3.50mm
- Shrouding :
- Shrouded - 4 Wall
- Connector Type :
- Header
- Contact Finish - Post :
- Tin
- Feature :
- Board Lock
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 0039299024
Mini-Fit Jr 5566 Series Header Solder Brass Tray Through Hole Gold Polyamide (PA66), Nylon 6/6 2-Position Board to Cable/Wire 0.504 12.80mm Height
0039299024 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tray.Product number Mini-Fit Jr 5566 belongs to the Mini-Fit Jr 5566 Series.In addition to General Purpose, Industrial, Telecommunications, there are other possible applications for the device.In many ways, it is more powerful due to its Board Lock feature.
0039299024 Features
Mini-Fit Jr 5566 series
0039299024 Applications
There are a lot of Molex
0039299024 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
