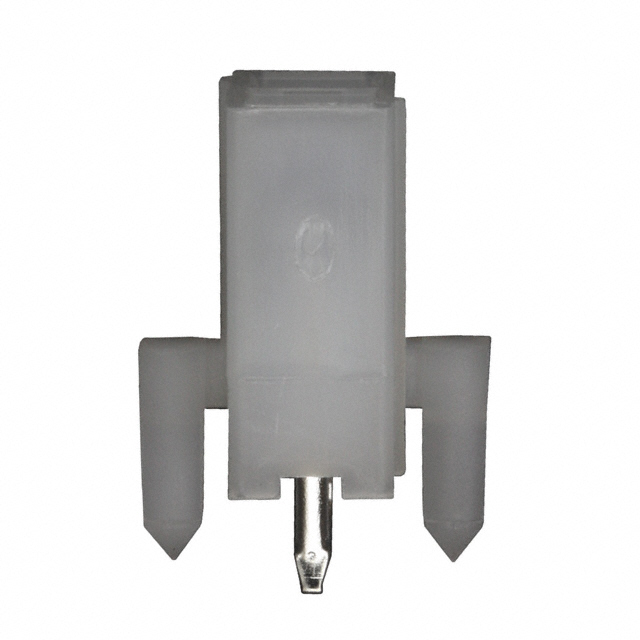

0039299023
Or copy the link below:
- Mfr.Part #
- 0039299023
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS
- Stock
- 209,610
- In Stock ：
- 209,610
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Packaging :
- Tray
- Insulation Color :
- Natural
- Fastening Type :
- Locking Ramp
- Applications :
- General Purpose, Industrial, Telecommunications
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Shrouding :
- Shrouded - 4 Wall
- Contact Material :
- Brass
- Termination :
- Solder
- RoHS Status :
- ROHS3 Compliant
- Number of Positions Loaded :
- All
- Contact Finish Thickness - Post :
- 35.0μin 0.90μm
- Contact Shape :
- Square
- Insulation Height :
- 0.504 12.80mm
- Mounting Type :
- Through Hole
- Feature :
- Board Lock
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 2
- Series :
- Mini-Fit Jr 5566
- Contact Finish Thickness - Mating :
- 35.4μin 0.90μm
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Connector Type :
- Header
- Material Flammability Rating :
- UL94 V-2
- Contact Length - Post :
- 0.138 3.50mm
- Contact Type :
- Male Pin
- Contact Finish - Mating :
- Tin
- Style :
- Board to Cable/Wire
- Factory Lead Time :
- 5 Weeks
- Datasheets
- 0039299023
Mini-Fit Jr 5566 Series Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 2-Position Board to Cable/Wire 0.504 12.80mm Height
0039299023 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the Mini-Fit Jr 5566 Series of products.It is possible for the device to be used for the application General Purpose, Industrial, Telecommunications.A number of features make it more powerful because of its Board Lock feature.
0039299023 Features
Mini-Fit Jr 5566 series
0039299023 Applications
There are a lot of Molex
0039299023 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
