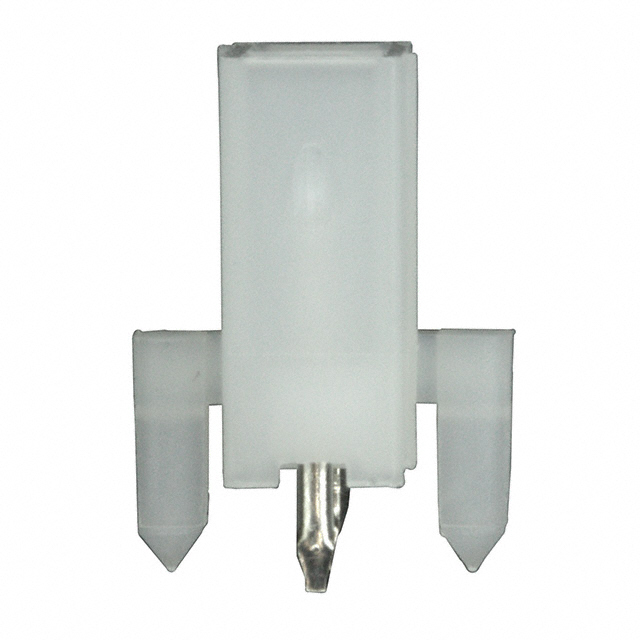

0039299022
Or copy the link below:
- Mfr.Part #
- 0039299022
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 2POS
- Stock
- 43,561
- In Stock ：
- 43,561
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- RoHS Status :
- ROHS3 Compliant
- DIN Conformance :
- No
- Termination :
- Solder
- Fastening Type :
- Locking Ramp
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions Loaded :
- All
- Feature :
- Board Lock
- Pbfree Code :
- yes
- Mounting Type :
- Through Hole
- Contact Shape :
- Square
- Contact Finish - Mating :
- Tin
- Empty Shell :
- No
- Connector Type :
- Header
- Contact Type :
- Male Pin
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Insulation Color :
- Natural
- Additional Feature :
- POLARIZATION, SHROUDED
- Applications :
- General Purpose, Industrial, Telecommunications
- JESD-609 Code :
- e3
- Filter Feature :
- No
- Contact Length - Post :
- 0.138 3.50mm
- Insulation Height :
- 0.504 12.80mm
- MIL Conformance :
- No
- Style :
- Board to Cable/Wire
- Contact Finish Thickness - Post :
- 35.0μin 0.90μm
- Contact Material :
- Brass
- Mixed Contacts :
- No
- Material Flammability Rating :
- UL94 V-2
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Contact Finish Thickness - Mating :
- 35.4μin 0.90μm
- IEC Conformance :
- No
- Number of Positions :
- 2
- Series :
- Mini-Fit Jr 5566
- Packaging :
- Tray
- Shrouding :
- Shrouded - 4 Wall
- Datasheets
- 0039299022
Mini-Fit Jr 5566 Series Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 2-Position Board to Cable/Wire 0.504 12.80mm Height
0039299022 Overview
This product is packaged in a Header cartonThis device's mounting type is Through Hole.It's packaged in a Tray case.Mini-Fit Jr 5566 Series product.There are also features like POLARIZATION, SHROUDED, just to name a few.General Purpose, Industrial, Telecommunications is one possible application.Its Board Lock feature makes it more powerful in a number of ways.
0039299022 Features
Mini-Fit Jr 5566 series
0039299022 Applications
There are a lot of Molex
0039299022 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
