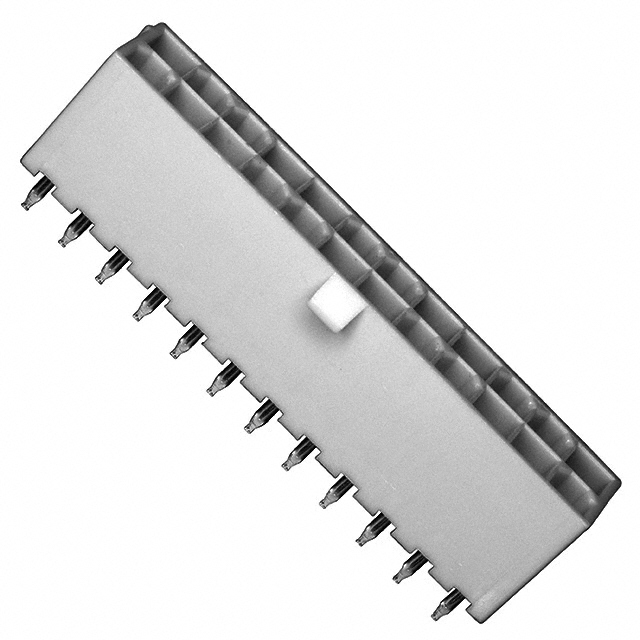

0039296248
Or copy the link below:
- Mfr.Part #
- 0039296248
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 24POS 4.2MM
- Stock
- 3,889
- In Stock ：
- 3,889
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Number of Positions Loaded :
- All
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 5 Weeks
- Pbfree Code :
- yes
- Termination :
- Solder
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Finish - Mating :
- Gold
- Contact Shape :
- Square
- Number of Rows :
- 2
- Fastening Type :
- Locking Ramp
- Mounting Type :
- Through Hole
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Insulation Color :
- Natural
- Packaging :
- Bulk
- Material Flammability Rating :
- UL94 V-0
- Applications :
- General Purpose, Industrial, Telecommunications
- Series :
- Mini-Fit Jr 5566
- Contact Finish - Post :
- Tin
- Style :
- Board to Cable/Wire
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Number of Positions :
- 24
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Contact Material :
- Brass
- Contact Length - Post :
- 0.138 3.50mm
- Connector Type :
- Header
- Contact Type :
- Male Pin
- Pitch - Mating :
- 0.165 4.20mm
- Insulation Height :
- 0.504 12.80mm
- Shrouding :
- Shrouded - 4 Wall
- Datasheets
- 0039296248
Mini-Fit Jr 5566 Series 2-Row Header Solder Brass Bulk Through Hole Gold Polyamide (PA66), Nylon 6/6 24-Position Board to Cable/Wire 0.504 12.80mm Height
0039296248 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Mini-Fit Jr 5566 Series of products.General Purpose, Industrial, Telecommunications is a possible application for the device.
0039296248 Features
Mini-Fit Jr 5566 series
0039296248 Applications
There are a lot of Molex
0039296248 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
