What is Peak-to-Peak Voltage, AC Peak vs. Peak-to-Peak vs. RMS Voltage

u Introduction:

Hi friends. There are several kinds of voltages in the world. this article will delve into the definition, function, working principle, applications, and sources of peak-to-peak voltage, offering you a comprehensive understanding of this fundamental concept.

 u Different kinds of voltage

Before we talk about Peak-to-Peak Voltage, let’s first look at the types of voltage:

There are several different types of voltage used in various applications. Here are some of the most common types:

1. Direct Current (DC) Voltage: This is a constant voltage that flows in one direction. It is commonly used in batteries, electronic circuits, and some power transmission systems.

2. Alternating Current (AC) Voltage: AC voltage continuously changes direction and magnitude over time, following a sinusoidal waveform. It is the most common type of voltage used in power distribution systems and household electrical outlets.

3. Peak Voltage: This is the maximum voltage reached in an AC waveform. It is often used to describe the amplitude of the voltage.

4. Root Mean Square (RMS) Voltage: RMS voltage is a measure of the effective voltage or the equivalent DC voltage that would produce the same amount of power in a resistive load. It is commonly used to describe the voltage levels in AC power systems.

 RMS Voltage Calculator

The RMS (Root Mean Square) Voltage Calculator is a tool used to calculate the effective voltage of an alternating current (AC) signal. In AC circuits, the voltage varies sinusoidally over time. The RMS voltage represents the equivalent DC voltage that would produce the same heating effect in a resistor as the AC voltage. It is an important parameter in electrical engineering and is used to determine power, current, and impedance in AC circuits. The RMS Voltage Calculator simplifies the process by allowing users to input the amplitude or peak voltage of the AC signal and obtain the corresponding RMS voltage value.

5. Peak-to-Peak Voltage: This is the voltage difference between the maximum and minimum values in an AC waveform. It is often used in analyzing and measuring the amplitude or the total voltage swing of an AC signal.

6. Pulsed Voltage: Pulsed voltage refers to a voltage signal that consists of a series of pulses, where each pulse has a specific magnitude, duration, and repetition rate. It is commonly used in applications such as pulse power systems and electronic instrumentation.

7. Step Voltage: Step voltage refers to a sudden change in voltage level, typically used in digital circuits where the voltage transitions from one level to another instantaneously.

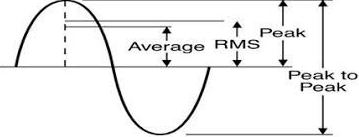

AC Peak Voltage vs. Peak-to-Peak Voltage vs. RMS Voltage: Differences

AC Peak Voltage, Peak-to-Peak Voltage, and RMS Voltage are all different ways of measuring the characteristics of an alternating current (AC) waveform. The AC Peak Voltage refers to the highest value reached by the waveform in one direction, while the Peak-to-Peak Voltage represents the difference between the highest and lowest values of the waveform. Both of these measurements are used to describe the magnitude or amplitude of the AC signal. On the other hand, the RMS Voltage is a measure of the effective or average voltage of the AC waveform. It takes into account the varying magnitude of the waveform over time and provides a value that is equivalent to the DC voltage that would produce the same amount of power in a resistive load. The RMS Voltage is commonly used in determining the power consumption or the heating effect of an AC circuit.

u Peak to Peak Voltage Calculator (VP-P) Definition:

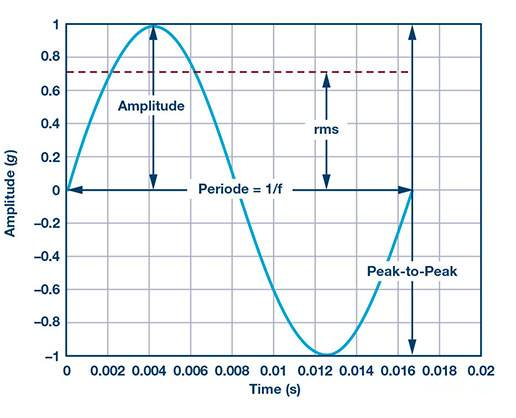

What is peak-to-peak in a waveform?

Peak-to-peak voltage is a measurement that quantifies the voltage difference between the maximum positive and maximum negative values of an alternating current (AC) or oscillating signal. It provides a complete picture of the signal's amplitude, illustrating the full range of voltage fluctuations within a given time frame.

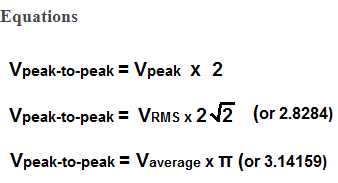

What is peak voltage formula?

What is Peak to Peak Voltage Calculator?

The Peak to Peak Voltage Calculator is a handy online tool that allows users to quickly and accurately calculate the peak-to-peak voltage of an alternating current (AC) or voltage waveform. By providing the necessary parameters such as the peak voltage or amplitude, the calculator simplifies the process of determining the peak-to-peak voltage. It is commonly used by engineers and technicians working with electrical circuits or signal analysis to analyze and understand the characteristics of a waveform. With its user-friendly interface and efficient calculations, the Peak to Peak Voltage Calculator saves time and effort in determining the total amplitude variation of a waveform over one complete cycle.

u Peak-to-peak voltage Function:

Peak-to-peak voltage is an essential parameter used to assess the amplitude of an electrical signal accurately. It helps engineers determine the signal's strength, measure its range, and evaluate its compatibility with various components and systems.

u How Does Peak-to-peak voltage Work? Understanding the Mechanics

To determine the peak-to-peak voltage, one must measure the highest positive peak and the lowest negative peak of a signal. By subtracting the negative value from the positive value, the peak-to-peak voltage is obtained. This measurement is commonly used in the analysis of AC signals, such as audio, radio frequency (RF), and power waveforms.

u Applications: Exploring the Diverse Utility of Peak-to-Peak Voltage

a. Audio Systems: Peak-to-peak voltage is crucial in audio applications to determine the dynamic range of sound signals, ensuring distortion-free amplification and high-quality audio reproduction.

b. Communication Systems: In RF applications, peak-to-peak voltage helps assess signal strength and determine the signal-to-noise ratio, aiding in reliable and efficient data transmission.

c. Power Systems: Peak-to-peak voltage calculations are instrumental in analyzing power waveforms, enabling engineers to evaluate power quality, troubleshoot issues, and optimize energy consumption.

u Where Can We Find Peak-to-Peak Voltage?

Peak-to-peak voltage is prevalent in various electronic components and systems. Some common sources include:

a. Oscilloscopes: These essential tools for signal analysis provide accurate measurements of peak-to-peak voltage in real-time, allowing engineers to visualize and troubleshoot waveforms.

b. Function Generators: These versatile devices generate waveforms with adjustable peak-to-peak voltage, making them indispensable in testing and prototyping applications.

c. Electrical Test Equipment: Multimeters, signal analyzers, and spectrum analyzers often feature peak-to-peak voltage measurement capabilities, facilitating precise analysis and characterization of electronic signals.

u Conclusion:

Peak-to-peak voltage is a fundamental concept in electrical engineering, playing a crucial role in signal analysis, system design, and troubleshooting. By understanding its definition, function, working principle, applications, and available sources, you gain valuable insights into harnessing this powerful measurement tool. So, embrace the world of peak-to-peak voltage and unlock new possibilities in your electronic endeavors.

What is peak to peak differential voltage?

What is 10 peak to peak voltage?

Frequently Asked Questions

Is the maximum voltage the same as peak voltage?

No, the maximum voltage and peak voltage are not necessarily the same. The maximum voltage refers to the highest instantaneous voltage reached in an AC waveform, while the peak voltage represents the magnitude of the voltage from the zero reference level to the highest positive or negative peak. In a sinusoidal waveform, the maximum voltage is equal to the peak voltage divided by the square root of 2.

How do you convert RMS to peak-to-peak voltage?

To convert RMS voltage to peak-to-peak voltage, you need to know the waveform shape. For a sinusoidal waveform, the peak-to-peak voltage can be calculated by multiplying the RMS voltage by 2 times the square root of 2 (approximately 2.828).

How to calculator root-mean-square (rms) voltage?

To calculate the root-mean-square (RMS) voltage, you typically follow these steps: a. Measure the instantaneous voltage values of the AC signal at regular intervals, such as using an oscilloscope. b. Square each of the voltage values. c. Take the average of the squared values. d. Take the square root of the average value obtained in the previous step. The resulting value is the RMS voltage, which represents the effective voltage of the AC signal. Alternatively, you can use mathematical formulas or online calculators specifically designed to calculate the RMS voltage.

Peak Voltage VS. Peak to Peak Voltage key difference

The key difference between peak voltage and peak-to-peak voltage lies in what they represent in an alternating current (AC) or voltage waveform. Peak voltage refers to the maximum positive or negative voltage reached by a waveform. It measures the magnitude of the highest positive or negative amplitude in a single cycle. In other words, it measures the distance from the zero or reference voltage level to the highest positive or negative voltage point. On the other hand, peak-to-peak voltage represents the total amplitude variation of a waveform over one complete cycle. It is calculated as the difference between the maximum positive peak voltage and the minimum negative peak voltage in a single cycle. In other words, it measures the distance from the lowest negative voltage point to the highest positive voltage point. To summarize: - Peak voltage measures the magnitude of the highest positive or negative voltage in a single cycle. - Peak-to-peak voltage measures the total amplitude variation of a waveform over one complete cycle. For example, in a sinusoidal waveform, the peak voltage represents the maximum positive or negative amplitude, while the peak-to-peak voltage represents the total variation between the highest positive peak and the lowest negative peak in one cycle.

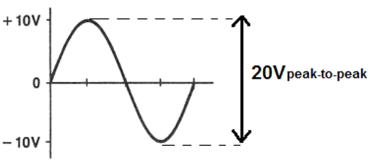

If the peak-to-peak voltage is 10V, what is the peak voltage?

Vp = Vp-p / 2 p - peak, p-p - peak to peak Ans : 10/2 = 5 volts
