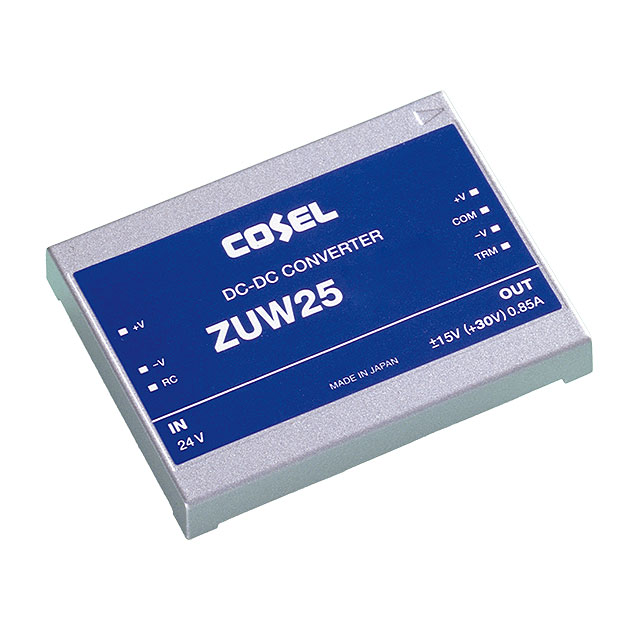

ZUW252412
- Mfr.Part #
- ZUW252412
- Manufacturer
- Cosel
- Package / Case
- 7-DIP Module
- Datasheet
- Download
- Description
- DC DC CONVERTER +/-12V
- Stock
- 5,460
- In Stock :
- 5,460
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cosel
- Product Category :
- Width :
- 50mm
- Reach Compliance Code :
- Unknown
- Weight :
- 65.000013g
- Voltage - Input (Min) :
- 18V
- Voltage - Input (Max) :
- 36V
- Terminal Form :
- PIN/PEG
- Factory Lead Time :
- 6 Weeks
- Size / Dimension :
- 2.56Lx1.97W x 0.33 H 65.0mmx50.0mmx8.5mm
- Published :
- 2005
- Input Voltage-Nom :
- 24V
- Number of Functions :
- 1
- Output Current :
- 1.05A
- Isolation :
- Isolated
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Number of Outputs :
- 2
- Input Current :
- 1.23A
- Operating Temperature :
- -20°C~71°C With Derating
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- ECCN Code :
- EAR99
- Output Power :
- 25W
- Series :
- ZUW (25W)
- Lead Free :
- Lead Free
- Trim/Adjustable Output :
- yes
- Current - Output (Max) :
- 1.05A 1.05A
- Nominal Input Voltage :
- 24V
- Length :
- 65mm
- Height :
- 8.382mm
- JESD-30 Code :
- R-XDMA-P7
- Mounting Type :
- Through Hole
- Terminal Position :
- Dual
- Output Voltage :
- 12V
- Pbfree Code :
- yes
- Feature :
- Remote On/Off, OCP, OVP
- Package / Case :
- 7-DIP Module
- Voltage - Isolation :
- 500V
- Current - Output 2 :
- 1.05A
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Type :
- Isolated Module
- Qualification Status :
- Not Qualified
- Approval Agency :
- CSA, UL
- Current - Output 1 :
- 1.05A
- Voltage - Output 2 :
- -12V
- Efficiency :
- 85%
- Number of Terminations :
- 7
- Applications :
- ITE (Commercial)
- Depth :
- 8.5mm
- Mount :
- PCB, Through Hole
- RoHS Status :
- RoHS Compliant
- Datasheets
- ZUW252412
