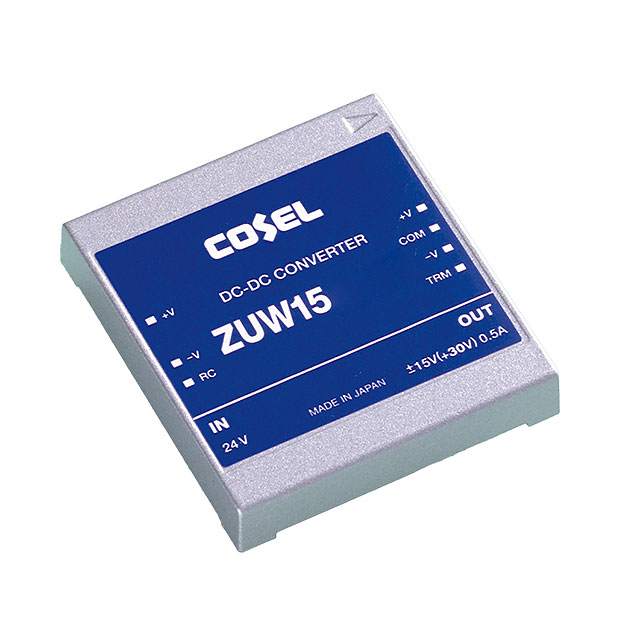

ZUW151212

Manufacturer :

Cosel

Product Category :

Number of Outputs :

2

Output Voltage :

12V

Current - Output 1 :

650mA

Published :

2001

Input Voltage-Nom :

12V

Output Power :

15W

Reach Compliance Code :

Unknown

Voltage - Output 2 :

-12V

Efficiency :

83%

Applications :

ITE (Commercial)

Output Current :

650mA

Approval Agency :

CSA, IEC, UL

Mount :

PCB, Through Hole

Terminal Position :

Dual

Mounting Type :

Through Hole

Package / Case :

7-DIP Module

JESD-30 Code :

R-XDMA-P7

Type :

Isolated Module

Width :

45mm

Trim/Adjustable Output :

yes

Height :

8.382mm

Feature :

Remote On/Off, OCP, OVP

RoHS Status :

RoHS Compliant

Depth :

8.5mm

Voltage - Isolation :

500V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Operating Temperature :

-20°C~71°C With Derating

Lead Free :

Lead Free

Total Power Output-Max :

15.6W

Number of Terminations :

7

Terminal Form :

PIN/PEG

Series :

ZUW (15W)

Input Current :

1.57A

Qualification Status :

Not Qualified

Turn On Delay Time :

100 ms

Voltage - Input (Max) :

18V

Size / Dimension :

1.97Lx1.77W x 0.33 H 50.0mmx45.0mmx8.5mm

Length :

50mm

ECCN Code :

EAR99

Pbfree Code :

yes

Current - Output (Max) :

650mA 650mA

Voltage - Input (Min) :

9V

Number of Functions :

1

Moisture Sensitivity Level (MSL) :

Not Applicable

Weight :

56.699046g

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Nominal Input Voltage :

12V

Current - Output 2 :

650mA
